| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T01_9000006148_45995cztM0_level2.fits | modeM0/AS1A13_017T01_9000006148_45995cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,259,520 | 109,656,000 |
| Size | 484.7 MB | 104.6 MB |
| Events in quadrant A | 5,631,525 | 728,060 |
| Events in quadrant B | 4,593,811 | 763,591 |
| Events in quadrant C | 2,842,432 | 754,031 |
| Events in quadrant D | 5,256,241 | 633,282 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21016 | 2 |
| B | 0 | 17948 | 2 |
| C | 0 | 12974 | 2 |
| D | 0 | 19988 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6321 | 190 | 3.005854% |
| B | 6321 | 261 | 4.129093% |
| C | 6321 | 10 | 0.158203% |
| D | 6322 | 568 | 8.984499% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7561 | 6322 | 53 | 53 | 0.70% | 0.84% |  |
| B | 7561 | 6321 | 114 | 114 | 1.51% | 1.80% |  |
| C | 7561 | 6321 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7562 | 6323 | 581 | 581 | 7.68% | 9.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2832353 | 19102.01 | 717 | 703 | 148.2 |
| A | 15 | 223 | 31542 | 208.04 | 717 | 703 | 148.2 |
| A | 13 | 254 | 8567 | 53.05 | 717 | 703 | 148.2 |
| B | 3 | 112 | 1596301 | 11357.25 | 723 | 701 | 140.5 |
| B | 5 | 255 | 71345 | 502.83 | 723 | 701 | 140.5 |
| B | 12 | 16 | 53554 | 376.2 | 723 | 701 | 140.5 |
| C | 12 | 2 | 8661 | 46.67 | 726 | 731 | 169.9 |
| C | 3 | 233 | 6326 | 32.93 | 726 | 731 | 169.9 |
| C | 13 | 61 | 4746 | 23.63 | 726 | 731 | 169.9 |
| D | 12 | 2 | 1824050 | 10574.62 | 687 | 665 | 172.4 |
| D | 1 | 52 | 595618 | 3450.4 | 687 | 665 | 172.4 |
| D | 13 | 249 | 90277 | 519.7 | 687 | 665 | 172.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

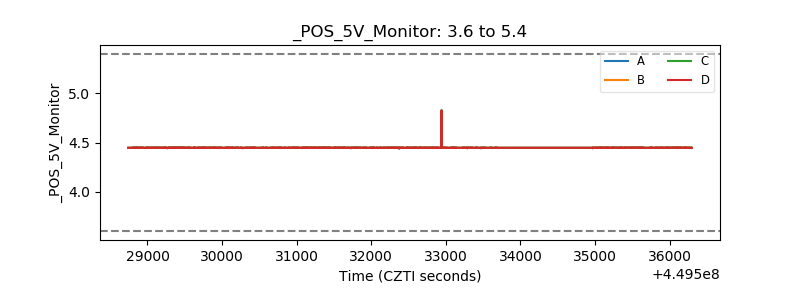

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
