| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_017T01_9000006148_45998cztM0_level2.fits | modeM0/AS1A13_017T01_9000006148_45998cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,019,520 | 115,632,000 |
| Size | 524.5 MB | 110.3 MB |
| Events in quadrant A | 6,142,702 | 765,258 |
| Events in quadrant B | 6,101,717 | 779,605 |
| Events in quadrant C | 3,068,756 | 782,945 |
| Events in quadrant D | 4,495,173 | 677,716 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23058 | 3 |
| B | 0 | 23150 | 5 |
| C | 0 | 14613 | 3 |
| D | 0 | 18687 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7114 | 215 | 3.022210% |
| B | 7113 | 499 | 7.015324% |
| C | 7113 | 28 | 0.393645% |
| D | 7113 | 442 | 6.213974% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9229 | 7115 | 7 | 7 | 0.08% | 0.10% |  |
| B | 9228 | 7115 | 352 | 352 | 3.81% | 4.95% |  |
| C | 9228 | 7116 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9228 | 7115 | 416 | 416 | 4.51% | 5.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3070306 | 18686.48 | 792 | 775 | 164.3 |
| A | 13 | 254 | 9448 | 52.8 | 792 | 775 | 164.3 |
| A | 3 | 137 | 9166 | 51.08 | 792 | 775 | 164.3 |
| B | 3 | 112 | 2945528 | 18756.84 | 788 | 764 | 157.0 |
| B | 12 | 111 | 19882 | 121.77 | 788 | 764 | 157.0 |
| B | 11 | 111 | 18514 | 113.06 | 788 | 764 | 157.0 |
| C | 10 | 20 | 5532 | 25.78 | 785 | 790 | 183.9 |
| C | 13 | 61 | 5119 | 23.54 | 785 | 790 | 183.9 |
| C | 3 | 233 | 3697 | 15.81 | 785 | 790 | 183.9 |
| D | 12 | 2 | 886538 | 4674.34 | 761 | 737 | 189.5 |
| D | 1 | 52 | 476171 | 2508.85 | 761 | 737 | 189.5 |
| D | 2 | 249 | 87671 | 458.75 | 761 | 737 | 189.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

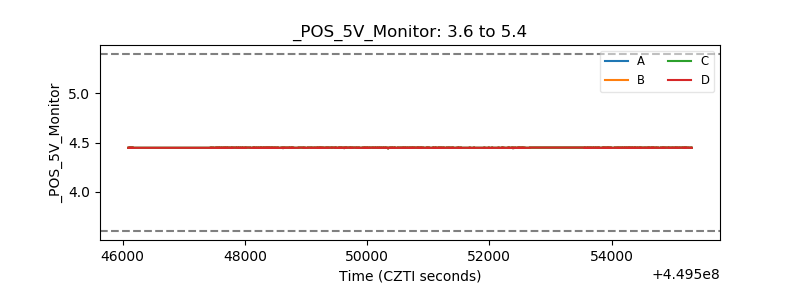

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
