| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_012T08_9000006150_46004cztM0_level2.fits | modeM0/AS1A13_012T08_9000006150_46004cztM0_level2_quad_clean.evt |
| Size (bytes) | 958,855,680 | 191,756,160 |
| Size | 914.4 MB | 182.9 MB |
| Events in quadrant A | 10,390,431 | 1,275,418 |
| Events in quadrant B | 12,252,353 | 1,205,721 |
| Events in quadrant C | 5,540,456 | 1,290,525 |
| Events in quadrant D | 6,344,792 | 1,170,268 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38805 | 2 |
| B | 0 | 45222 | 2 |
| C | 0 | 25884 | 2 |
| D | 0 | 27997 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 256 | 0 |
| B | 0 | 256 | 0 |
| C | 0 | 256 | 0 |
| D | 0 | 256 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12483 | 474 | 3.797164% |
| B | 12484 | 1652 | 13.232938% |
| C | 12484 | 173 | 1.385774% |
| D | 12484 | 283 | 2.266902% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13378 | 12483 | 4 | 4 | 0.03% | 0.03% |  |
| B | 13379 | 12484 | 934 | 934 | 6.98% | 7.48% |  |
| C | 13379 | 12484 | 5 | 5 | 0.04% | 0.04% |  |
| D | 13379 | 12484 | 114 | 114 | 0.85% | 0.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4947282 | 17057.87 | 1400 | 1368 | 289.9 |
| A | 13 | 254 | 19016 | 60.86 | 1400 | 1368 | 289.9 |
| A | 3 | 137 | 16641 | 52.67 | 1400 | 1368 | 289.9 |
| B | 3 | 112 | 6759211 | 25173.43 | 1355 | 1307 | 268.5 |
| B | 8 | 234 | 38934 | 140.16 | 1355 | 1307 | 268.5 |
| B | 12 | 111 | 35095 | 125.86 | 1355 | 1307 | 268.5 |
| C | 14 | 254 | 90698 | 273.41 | 1386 | 1392 | 326.6 |
| C | 12 | 2 | 35453 | 104.28 | 1386 | 1392 | 326.6 |
| C | 13 | 61 | 9366 | 24.41 | 1386 | 1392 | 326.6 |
| D | 2 | 249 | 459030 | 1328.08 | 1379 | 1337 | 344.6 |
| D | 1 | 52 | 184001 | 530.03 | 1379 | 1337 | 344.6 |
| D | 13 | 249 | 107213 | 307.22 | 1379 | 1337 | 344.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

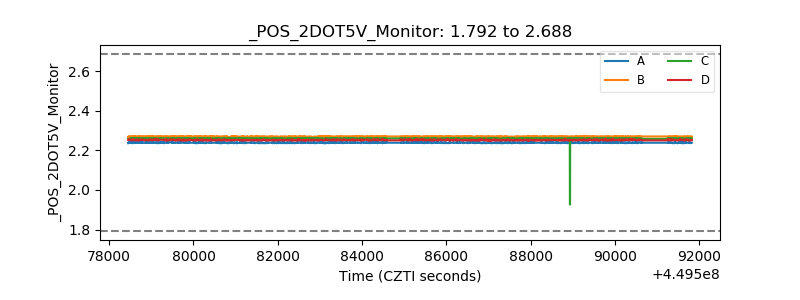

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
