| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_033T01_9000006152_46016cztM0_level2.fits | modeM0/AS1A13_033T01_9000006152_46016cztM0_level2_quad_clean.evt |
| Size (bytes) | 675,835,200 | 118,704,960 |
| Size | 644.5 MB | 113.2 MB |
| Events in quadrant A | 6,304,823 | 809,343 |
| Events in quadrant B | 9,774,727 | 712,473 |
| Events in quadrant C | 4,100,300 | 801,974 |
| Events in quadrant D | 4,243,533 | 736,778 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23500 | 0 |
| B | 0 | 34458 | 0 |
| C | 0 | 17702 | 3 |
| D | 0 | 17940 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7673 | 64 | 0.834094% |
| B | 7673 | 1571 | 20.474391% |
| C | 7671 | 108 | 1.407900% |
| D | 7674 | 80 | 1.042481% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7672 | 7672 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7672 | 7672 | 1223 | 1223 | 15.94% | 15.94% |  |
| C | 7672 | 7670 | 63 | 63 | 0.82% | 0.82% |  |
| D | 7673 | 7673 | 79 | 79 | 1.03% | 1.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2916117 | 16047.06 | 865 | 845 | 181.7 |
| A | 13 | 254 | 12622 | 64.82 | 865 | 845 | 181.7 |
| A | 0 | 247 | 11833 | 60.48 | 865 | 845 | 181.7 |
| B | 3 | 112 | 6497698 | 40000.06 | 808 | 783 | 162.4 |
| B | 4 | 171 | 39479 | 238.24 | 808 | 783 | 162.4 |
| B | 0 | 183 | 25179 | 150.2 | 808 | 783 | 162.4 |
| C | 3 | 233 | 643219 | 3236.43 | 842 | 848 | 198.5 |
| C | 14 | 254 | 151677 | 759.92 | 842 | 848 | 198.5 |
| C | 1 | 90 | 6259 | 27.26 | 842 | 848 | 198.5 |
| D | 1 | 52 | 564276 | 2665.51 | 846 | 821 | 211.4 |
| D | 2 | 249 | 106398 | 499.45 | 846 | 821 | 211.4 |
| D | 13 | 249 | 89298 | 418.55 | 846 | 821 | 211.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

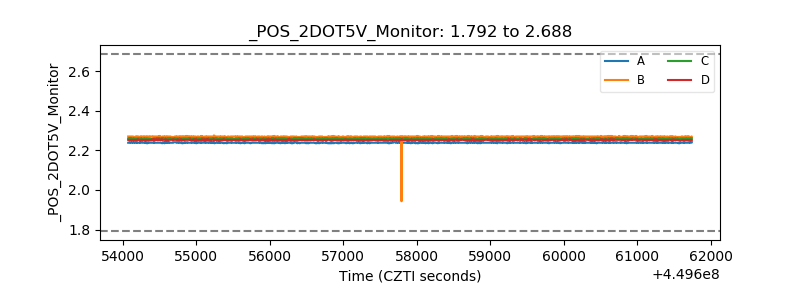

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
