| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_033T02_9000006154_46024cztM0_level2.fits | modeM0/AS1A13_033T02_9000006154_46024cztM0_level2_quad_clean.evt |
| Size (bytes) | 660,202,560 | 112,406,400 |
| Size | 629.6 MB | 107.2 MB |
| Events in quadrant A | 6,134,742 | 779,450 |
| Events in quadrant B | 10,732,492 | 609,116 |
| Events in quadrant C | 3,231,596 | 816,676 |
| Events in quadrant D | 3,819,197 | 729,816 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22618 | 2 |
| B | 0 | 36550 | 2 |
| C | 0 | 14129 | 2 |
| D | 0 | 15914 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6721 | 283 | 4.210683% |
| B | 6721 | 2396 | 35.649457% |
| C | 6721 | 51 | 0.758816% |
| D | 6722 | 131 | 1.948825% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9086 | 6723 | 33 | 33 | 0.36% | 0.49% |  |
| B | 9086 | 6722 | 1849 | 1849 | 20.35% | 27.51% |  |
| C | 9086 | 6722 | 8 | 8 | 0.09% | 0.12% |  |
| D | 9087 | 6722 | 87 | 87 | 0.96% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3004234 | 18144.19 | 800 | 783 | 165.5 |
| A | 13 | 248 | 22659 | 132.16 | 800 | 783 | 165.5 |
| A | 13 | 254 | 11059 | 62.08 | 800 | 783 | 165.5 |
| B | 3 | 112 | 7769776 | 54349.04 | 725 | 705 | 142.9 |
| B | 4 | 171 | 82780 | 574.16 | 725 | 705 | 142.9 |
| B | 12 | 111 | 17640 | 118.47 | 725 | 705 | 142.9 |
| C | 2 | 14 | 36308 | 186.92 | 811 | 817 | 189.9 |
| C | 0 | 239 | 11296 | 55.19 | 811 | 817 | 189.9 |
| C | 12 | 250 | 9874 | 47.7 | 811 | 817 | 189.9 |
| D | 1 | 52 | 257158 | 1278.49 | 799 | 776 | 200.5 |
| D | 7 | 204 | 210284 | 1044.75 | 799 | 776 | 200.5 |
| D | 2 | 249 | 157366 | 780.86 | 799 | 776 | 200.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

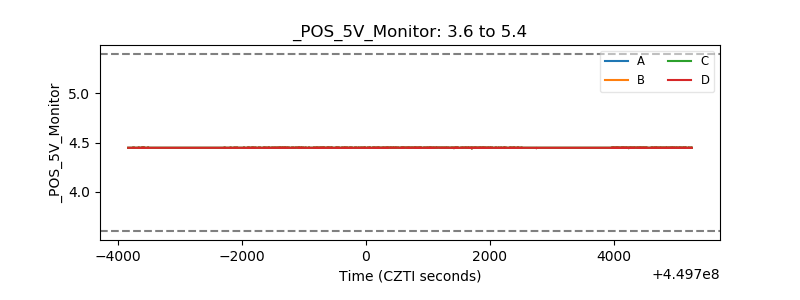

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
