| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_033T03_9000006156_46033cztM0_level2.fits | modeM0/AS1A13_033T03_9000006156_46033cztM0_level2_quad_clean.evt |
| Size (bytes) | 241,496,640 | 39,507,840 |
| Size | 230.3 MB | 37.7 MB |
| Events in quadrant A | 2,381,324 | 262,985 |
| Events in quadrant B | 3,427,897 | 224,670 |
| Events in quadrant C | 1,411,273 | 271,378 |
| Events in quadrant D | 1,513,448 | 248,838 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8607 | 1 |
| B | 0 | 12009 | 1 |
| C | 0 | 6034 | 1 |
| D | 0 | 6246 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2621 | 190 | 7.249142% |
| B | 2621 | 793 | 30.255628% |
| C | 2621 | 115 | 4.387638% |
| D | 2621 | 120 | 4.578405% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2941 | 2622 | 6 | 6 | 0.20% | 0.23% |  |
| B | 2941 | 2622 | 428 | 428 | 14.55% | 16.32% |  |
| C | 2941 | 2622 | 23 | 23 | 0.78% | 0.88% |  |
| D | 2941 | 2622 | 15 | 15 | 0.51% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1053714 | 15229.39 | 320 | 312 | 69.2 |
| A | 13 | 248 | 86481 | 1245.77 | 320 | 312 | 69.2 |
| A | 13 | 254 | 4552 | 61.3 | 320 | 312 | 69.2 |
| B | 3 | 112 | 2222889 | 36455.38 | 292 | 283 | 61.0 |
| B | 5 | 32 | 16773 | 270.47 | 292 | 283 | 61.0 |
| B | 5 | 255 | 11304 | 180.77 | 292 | 283 | 61.0 |
| C | 14 | 254 | 167628 | 2186.64 | 316 | 317 | 76.5 |
| C | 12 | 249 | 6871 | 85.66 | 316 | 317 | 76.5 |
| C | 3 | 233 | 2532 | 28.95 | 316 | 317 | 76.5 |
| D | 2 | 37 | 88004 | 1067.73 | 320 | 310 | 82.1 |
| D | 13 | 171 | 60940 | 738.21 | 320 | 310 | 82.1 |
| D | 2 | 249 | 57465 | 695.9 | 320 | 310 | 82.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

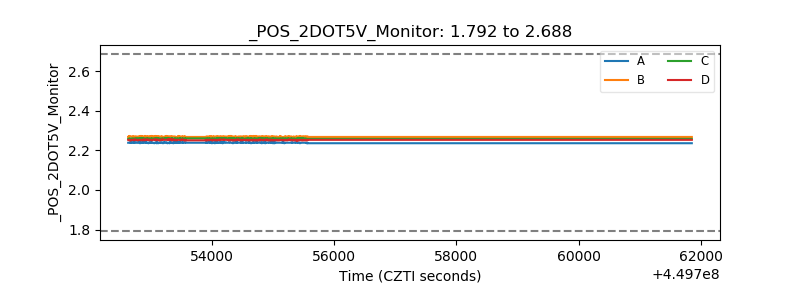

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
