| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_077T01_9000006168_46087cztM0_level2.fits | modeM0/AS1A13_077T01_9000006168_46087cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,262,400 | 119,980,800 |
| Size | 484.7 MB | 114.4 MB |
| Events in quadrant A | 6,250,086 | 790,059 |
| Events in quadrant B | 3,725,669 | 814,588 |
| Events in quadrant C | 3,486,829 | 794,542 |
| Events in quadrant D | 4,770,873 | 712,930 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23216 | 0 |
| B | 0 | 16190 | 0 |
| C | 0 | 15878 | 0 |
| D | 0 | 19363 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7482 | 133 | 1.777600% |
| B | 7482 | 126 | 1.684042% |
| C | 7482 | 20 | 0.267308% |
| D | 7483 | 253 | 3.380997% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7482 | 7482 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7482 | 7482 | 16 | 16 | 0.21% | 0.21% |  |
| C | 7482 | 7482 | 17 | 17 | 0.23% | 0.23% |  |
| D | 7483 | 7483 | 178 | 178 | 2.38% | 2.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2908330 | 16109.13 | 857 | 839 | 180.5 |
| A | 7 | 3 | 17910 | 94.58 | 857 | 839 | 180.5 |
| A | 3 | 137 | 10232 | 52.04 | 857 | 839 | 180.5 |
| B | 0 | 190 | 147483 | 846.94 | 857 | 829 | 173.2 |
| B | 5 | 172 | 90844 | 519.84 | 857 | 829 | 173.2 |
| B | 3 | 112 | 42367 | 239.88 | 857 | 829 | 173.2 |
| C | 3 | 233 | 146137 | 720.24 | 845 | 849 | 201.7 |
| C | 12 | 2 | 35972 | 174.12 | 845 | 849 | 201.7 |
| C | 14 | 254 | 14726 | 68.79 | 845 | 849 | 201.7 |
| D | 13 | 249 | 529066 | 2533.98 | 828 | 803 | 208.5 |
| D | 1 | 52 | 487794 | 2336.01 | 828 | 803 | 208.5 |
| D | 5 | 235 | 286898 | 1372.35 | 828 | 803 | 208.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

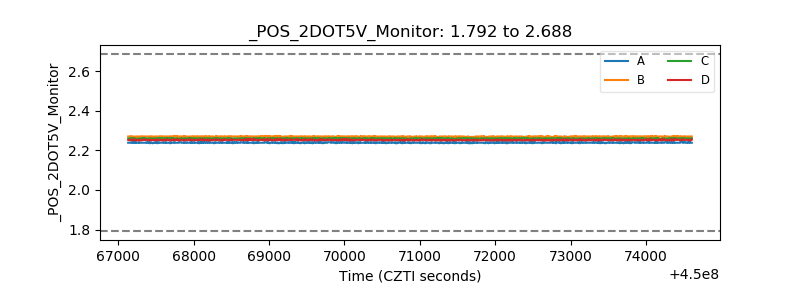

| +2.5 Volts monitor |  |

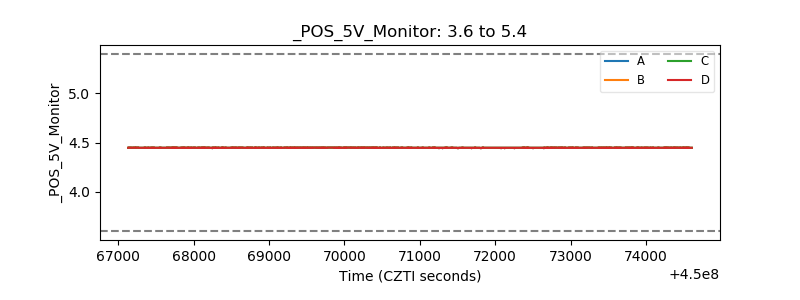

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
