| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_077T01_9000006168_46092cztM0_level2.fits | modeM0/AS1A13_077T01_9000006168_46092cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,915,200 | 110,427,840 |
| Size | 448.1 MB | 105.3 MB |
| Events in quadrant A | 6,077,574 | 727,646 |
| Events in quadrant B | 3,564,232 | 752,588 |
| Events in quadrant C | 3,201,140 | 723,759 |
| Events in quadrant D | 4,013,128 | 656,585 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22290 | 2 |
| B | 0 | 15194 | 1 |
| C | 0 | 14446 | 1 |
| D | 0 | 16653 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6936 | 206 | 2.970012% |
| B | 6936 | 142 | 2.047290% |
| C | 6936 | 91 | 1.311995% |
| D | 6936 | 213 | 3.070934% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7661 | 6937 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7661 | 6937 | 20 | 20 | 0.26% | 0.29% |  |
| C | 7661 | 6937 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7661 | 6937 | 116 | 116 | 1.51% | 1.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2875612 | 17437.81 | 787 | 767 | 164.9 |
| A | 9 | 191 | 132236 | 797.45 | 787 | 767 | 164.9 |
| A | 13 | 254 | 11486 | 65.02 | 787 | 767 | 164.9 |
| B | 0 | 190 | 297517 | 1862.39 | 783 | 756 | 159.3 |
| B | 5 | 172 | 120336 | 750.45 | 783 | 756 | 159.3 |
| B | 3 | 112 | 36461 | 224.07 | 783 | 756 | 159.3 |
| C | 14 | 254 | 137021 | 739.23 | 777 | 782 | 184.3 |
| C | 3 | 233 | 29821 | 157.57 | 777 | 782 | 184.3 |
| C | 13 | 61 | 5160 | 23.76 | 777 | 782 | 184.3 |
| D | 5 | 235 | 502581 | 2562.67 | 774 | 749 | 195.8 |
| D | 1 | 52 | 325255 | 1657.13 | 774 | 749 | 195.8 |
| D | 7 | 39 | 56753 | 285.99 | 774 | 749 | 195.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

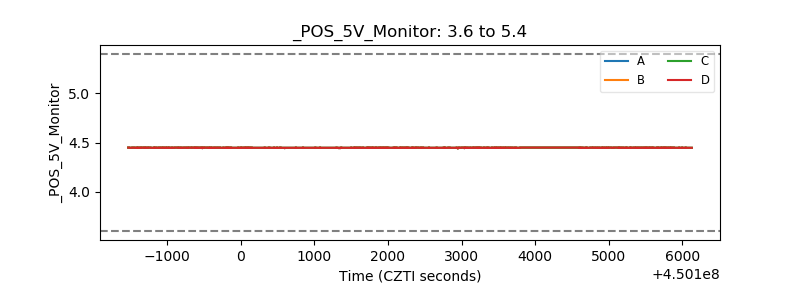

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
