| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_077T01_9000006168_46095cztM0_level2.fits | modeM0/AS1A13_077T01_9000006168_46095cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,850,560 | 92,736,000 |
| Size | 595.9 MB | 88.4 MB |
| Events in quadrant A | 5,663,116 | 671,371 |
| Events in quadrant B | 3,128,136 | 696,904 |
| Events in quadrant C | 3,526,983 | 645,888 |
| Events in quadrant D | 10,335,924 | 365,529 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20783 | 4 |
| B | 0 | 13510 | 1 |
| C | 0 | 14887 | 1 |
| D | 0 | 34873 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6134 | 197 | 3.211607% |
| B | 6134 | 116 | 1.891099% |
| C | 6134 | 313 | 5.102706% |
| D | 6135 | 2837 | 46.242869% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7214 | 6135 | 24 | 24 | 0.33% | 0.39% |  |
| B | 7214 | 6135 | 42 | 42 | 0.58% | 0.68% |  |
| C | 7214 | 6135 | 195 | 195 | 2.70% | 3.18% |  |
| D | 7215 | 6136 | 2593 | 2593 | 35.94% | 42.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2699901 | 18483.28 | 698 | 683 | 146.0 |
| A | 9 | 191 | 155805 | 1062.22 | 698 | 683 | 146.0 |
| A | 3 | 7 | 92443 | 628.34 | 698 | 683 | 146.0 |
| B | 5 | 172 | 149402 | 1090.12 | 692 | 671 | 136.4 |
| B | 0 | 190 | 110920 | 808.07 | 692 | 671 | 136.4 |
| B | 0 | 186 | 61416 | 445.23 | 692 | 671 | 136.4 |
| C | 14 | 254 | 887461 | 5602.87 | 670 | 674 | 158.3 |
| C | 3 | 233 | 18380 | 111.87 | 670 | 674 | 158.3 |
| C | 12 | 2 | 7444 | 42.77 | 670 | 674 | 158.3 |
| D | 2 | 37 | 7127982 | 48780.6 | 579 | 563 | 146.1 |
| D | 1 | 52 | 542497 | 3709.04 | 579 | 563 | 146.1 |
| D | 13 | 171 | 128284 | 874.13 | 579 | 563 | 146.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

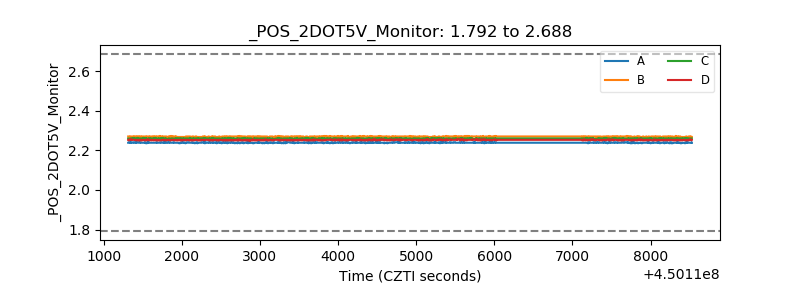

| +2.5 Volts monitor |  |

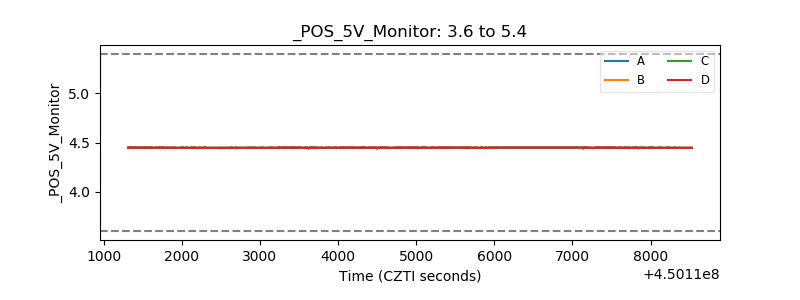

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
