| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000006170_46100cztM0_level2.fits | modeM0/AS1C07_001T10_9000006170_46100cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,652,160 | 111,960,000 |
| Size | 436.5 MB | 106.8 MB |
| Events in quadrant A | 5,932,510 | 722,394 |
| Events in quadrant B | 3,400,051 | 765,616 |
| Events in quadrant C | 3,241,029 | 752,191 |
| Events in quadrant D | 3,842,169 | 678,056 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22408 | 2 |
| B | 0 | 15018 | 2 |
| C | 0 | 14708 | 2 |
| D | 0 | 16374 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6763 | 178 | 2.631968% |
| B | 6763 | 106 | 1.567352% |
| C | 6763 | 54 | 0.798462% |
| D | 6763 | 78 | 1.153334% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7642 | 6762 | 32 | 32 | 0.42% | 0.47% |  |
| B | 7642 | 6762 | 16 | 16 | 0.21% | 0.24% |  |
| C | 7642 | 6762 | 37 | 37 | 0.48% | 0.55% |  |
| D | 7642 | 6762 | 36 | 36 | 0.47% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3062532 | 20240.02 | 727 | 712 | 151.3 |
| A | 7 | 3 | 26503 | 170.49 | 727 | 712 | 151.3 |
| A | 9 | 191 | 14830 | 93.33 | 727 | 712 | 151.3 |
| B | 0 | 190 | 276816 | 1885.05 | 740 | 719 | 146.5 |
| B | 5 | 172 | 107170 | 726.79 | 740 | 719 | 146.5 |
| B | 3 | 112 | 39310 | 263.48 | 740 | 719 | 146.5 |
| C | 14 | 254 | 330171 | 1934.01 | 734 | 736 | 170.3 |
| C | 3 | 233 | 44486 | 256.84 | 734 | 736 | 170.3 |
| C | 12 | 2 | 5558 | 28.31 | 734 | 736 | 170.3 |
| D | 1 | 52 | 340473 | 1909.4 | 722 | 701 | 177.9 |
| D | 2 | 37 | 211129 | 1182.53 | 722 | 701 | 177.9 |
| D | 2 | 165 | 147784 | 826.56 | 722 | 701 | 177.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

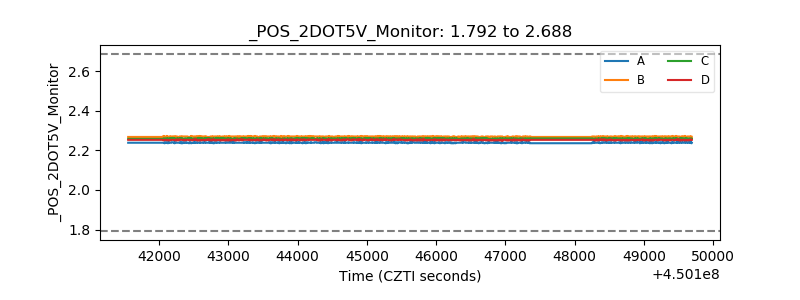

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
