| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000006170_46115cztM0_level2.fits | modeM0/AS1C07_001T10_9000006170_46115cztM0_level2_quad_clean.evt |
| Size (bytes) | 704,494,080 | 107,585,280 |
| Size | 671.9 MB | 102.6 MB |
| Events in quadrant A | 6,287,077 | 752,209 |
| Events in quadrant B | 3,337,408 | 807,533 |
| Events in quadrant C | 3,268,409 | 786,140 |
| Events in quadrant D | 12,633,018 | 415,071 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23585 | 2 |
| B | 0 | 14997 | 2 |
| C | 0 | 15041 | 2 |
| D | 0 | 42464 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7123 | 211 | 2.962235% |
| B | 7123 | 64 | 0.898498% |
| C | 7123 | 54 | 0.758108% |
| D | 7122 | 3397 | 47.697276% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7738 | 7124 | 10 | 10 | 0.13% | 0.14% |  |
| B | 7738 | 7124 | 8 | 8 | 0.10% | 0.11% |  |
| C | 7738 | 7124 | 31 | 31 | 0.40% | 0.44% |  |
| D | 7737 | 7123 | 2908 | 2908 | 37.59% | 40.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3153084 | 19723.26 | 771 | 752 | 159.8 |
| A | 9 | 191 | 113712 | 706.76 | 771 | 752 | 159.8 |
| A | 13 | 248 | 32290 | 197.32 | 771 | 752 | 159.8 |
| B | 3 | 112 | 71930 | 461.13 | 787 | 760 | 154.3 |
| B | 5 | 172 | 52186 | 333.2 | 787 | 760 | 154.3 |
| B | 0 | 190 | 33949 | 215.04 | 787 | 760 | 154.3 |
| C | 2 | 14 | 175540 | 965.09 | 780 | 784 | 181.1 |
| C | 3 | 9 | 24556 | 131.28 | 780 | 784 | 181.1 |
| C | 14 | 254 | 17700 | 93.42 | 780 | 784 | 181.1 |
| D | 2 | 37 | 6320790 | 41031.1 | 613 | 595 | 154.0 |
| D | 1 | 52 | 2205641 | 14315.3 | 613 | 595 | 154.0 |
| D | 13 | 249 | 1325248 | 8599.73 | 613 | 595 | 154.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

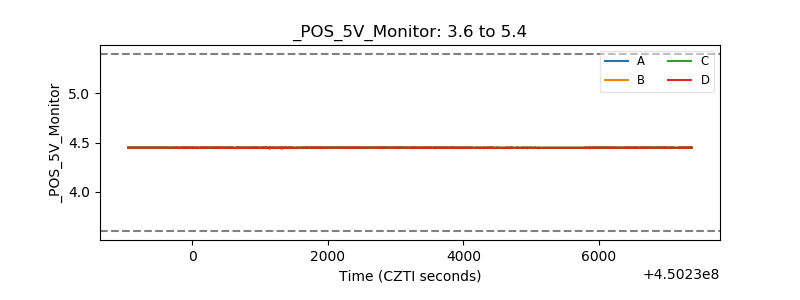

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
