| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T04_9000006172_46118cztM0_level2.fits | modeM0/AS1A13_092T04_9000006172_46118cztM0_level2_quad_clean.evt |
| Size (bytes) | 689,209,920 | 115,407,360 |
| Size | 657.3 MB | 110.1 MB |
| Events in quadrant A | 6,480,474 | 799,448 |
| Events in quadrant B | 4,233,508 | 827,139 |
| Events in quadrant C | 3,552,206 | 809,856 |
| Events in quadrant D | 10,648,268 | 521,179 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23913 | 0 |
| B | 0 | 17600 | 0 |
| C | 0 | 16115 | 0 |
| D | 0 | 36958 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7714 | 195 | 2.527871% |
| B | 7715 | 214 | 2.773817% |
| C | 7715 | 37 | 0.479585% |
| D | 7715 | 2495 | 32.339598% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7714 | 7714 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7715 | 7715 | 27 | 27 | 0.35% | 0.35% |  |
| C | 7715 | 7715 | 11 | 11 | 0.14% | 0.14% |  |
| D | 7715 | 7715 | 1964 | 1964 | 25.46% | 25.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2988820 | 16294.24 | 878 | 857 | 183.4 |
| A | 7 | 3 | 42168 | 225.28 | 878 | 857 | 183.4 |
| A | 14 | 235 | 27201 | 143.66 | 878 | 857 | 183.4 |
| B | 12 | 16 | 375115 | 2116.51 | 878 | 847 | 176.8 |
| B | 3 | 112 | 168110 | 945.88 | 878 | 847 | 176.8 |
| B | 0 | 190 | 107412 | 602.63 | 878 | 847 | 176.8 |
| C | 12 | 2 | 67810 | 323.61 | 869 | 873 | 206.8 |
| C | 3 | 9 | 35612 | 167.95 | 869 | 873 | 206.8 |
| C | 14 | 254 | 32001 | 150.49 | 869 | 873 | 206.8 |
| D | 2 | 37 | 2887255 | 15602.63 | 718 | 693 | 185.0 |
| D | 1 | 52 | 2600944 | 14055.04 | 718 | 693 | 185.0 |
| D | 13 | 249 | 1853620 | 10015.56 | 718 | 693 | 185.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

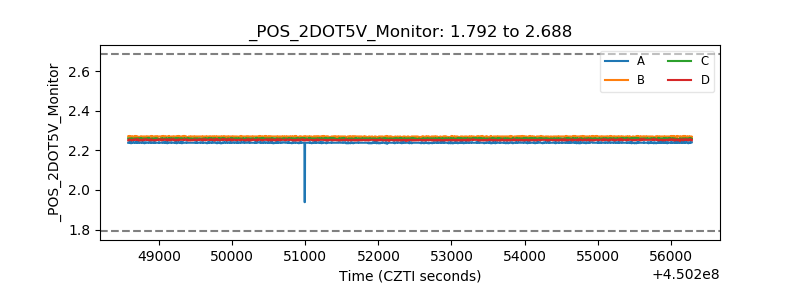

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
