| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_098T02_9000006174_46132cztM0_level2.fits | modeM0/AS1A13_098T02_9000006174_46132cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,526,080 | 125,651,520 |
| Size | 675.7 MB | 119.8 MB |
| Events in quadrant A | 8,188,324 | 840,140 |
| Events in quadrant B | 4,076,357 | 891,885 |
| Events in quadrant C | 3,918,179 | 860,623 |
| Events in quadrant D | 9,416,673 | 647,874 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29576 | 0 |
| B | 0 | 17461 | 1 |
| C | 0 | 17417 | 0 |
| D | 0 | 33562 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8112 | 295 | 3.636588% |
| B | 8112 | 114 | 1.405325% |
| C | 8112 | 40 | 0.493097% |
| D | 8112 | 1631 | 20.106016% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8112 | 8112 | 61 | 61 | 0.75% | 0.75% |  |
| B | 8112 | 8112 | 9 | 9 | 0.11% | 0.11% |  |
| C | 8112 | 8112 | 23 | 23 | 0.28% | 0.28% |  |
| D | 8112 | 8112 | 1273 | 1273 | 15.69% | 15.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3282476 | 16843.78 | 927 | 906 | 194.8 |
| A | 9 | 191 | 1236528 | 6342.25 | 927 | 906 | 194.8 |
| A | 10 | 255 | 30735 | 153.11 | 927 | 906 | 194.8 |
| B | 3 | 112 | 124555 | 653.23 | 939 | 909 | 189.3 |
| B | 15 | 201 | 82256 | 429.76 | 939 | 909 | 189.3 |
| B | 0 | 190 | 61083 | 317.9 | 939 | 909 | 189.3 |
| C | 12 | 2 | 233315 | 1064.07 | 923 | 926 | 218.4 |
| C | 14 | 254 | 54721 | 246.32 | 923 | 926 | 218.4 |
| C | 3 | 233 | 25273 | 111.48 | 923 | 926 | 218.4 |
| D | 2 | 249 | 1800861 | 8550.43 | 831 | 803 | 210.5 |
| D | 1 | 52 | 1494688 | 7096.08 | 831 | 803 | 210.5 |
| D | 5 | 235 | 860316 | 4082.76 | 831 | 803 | 210.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

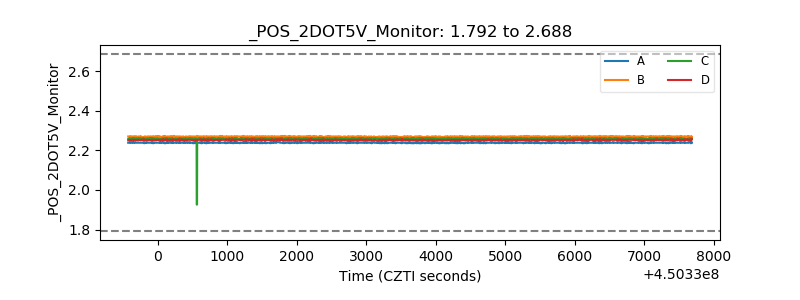

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
