| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_098T02_9000006174_46136cztM0_level2.fits | modeM0/AS1A13_098T02_9000006174_46136cztM0_level2_quad_clean.evt |
| Size (bytes) | 612,264,960 | 93,274,560 |
| Size | 583.9 MB | 89.0 MB |
| Events in quadrant A | 5,636,338 | 645,628 |
| Events in quadrant B | 3,601,344 | 667,947 |
| Events in quadrant C | 4,814,437 | 616,219 |
| Events in quadrant D | 8,132,580 | 462,084 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20567 | 1 |
| B | 0 | 14725 | 1 |
| C | 0 | 18733 | 2 |
| D | 0 | 28458 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6188 | 191 | 3.086619% |
| B | 6189 | 228 | 3.683955% |
| C | 6188 | 515 | 8.322560% |
| D | 6188 | 1726 | 27.892696% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7013 | 6189 | 4 | 4 | 0.06% | 0.06% |  |
| B | 7014 | 6190 | 95 | 95 | 1.35% | 1.53% |  |
| C | 7013 | 6189 | 395 | 395 | 5.63% | 6.38% |  |
| D | 7013 | 6189 | 1308 | 1308 | 18.65% | 21.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2793647 | 19351.61 | 692 | 678 | 144.3 |
| A | 9 | 191 | 142348 | 981.59 | 692 | 678 | 144.3 |
| A | 2 | 79 | 12901 | 84.69 | 692 | 678 | 144.3 |
| B | 15 | 201 | 373363 | 2702.27 | 687 | 666 | 137.9 |
| B | 5 | 172 | 218139 | 1576.81 | 687 | 666 | 137.9 |
| B | 3 | 112 | 204313 | 1476.56 | 687 | 666 | 137.9 |
| C | 14 | 254 | 1925800 | 12261.55 | 665 | 668 | 157.0 |
| C | 12 | 2 | 240319 | 1526.39 | 665 | 668 | 157.0 |
| C | 2 | 14 | 38126 | 238.58 | 665 | 668 | 157.0 |
| D | 1 | 52 | 2400237 | 15483.59 | 613 | 593 | 155.0 |
| D | 2 | 249 | 1228223 | 7921.22 | 613 | 593 | 155.0 |
| D | 5 | 235 | 1021355 | 6586.42 | 613 | 593 | 155.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

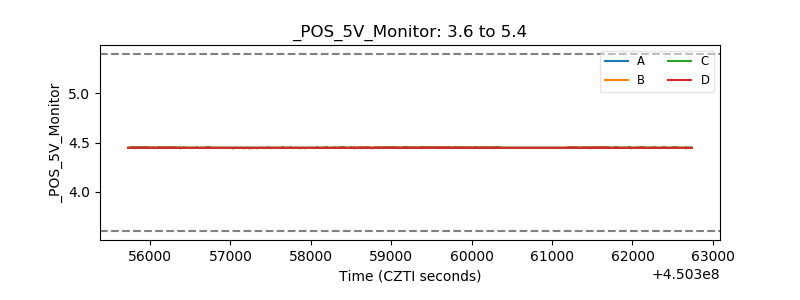

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
