| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_098T02_9000006174_46139cztM0_level2.fits | modeM0/AS1A13_098T02_9000006174_46139cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,693,760 | 97,018,560 |
| Size | 580.5 MB | 92.5 MB |
| Events in quadrant A | 5,771,444 | 681,602 |
| Events in quadrant B | 4,398,281 | 659,169 |
| Events in quadrant C | 3,261,188 | 685,119 |
| Events in quadrant D | 8,621,901 | 480,001 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21381 | 1 |
| B | 0 | 17241 | 1 |
| C | 0 | 14068 | 1 |
| D | 0 | 29935 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6183 | 180 | 2.911208% |
| B | 6184 | 540 | 8.732212% |
| C | 6184 | 106 | 1.714101% |
| D | 6184 | 1789 | 28.929495% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7318 | 6184 | 32 | 32 | 0.44% | 0.52% |  |
| B | 7319 | 6185 | 329 | 329 | 4.50% | 5.32% |  |
| C | 7319 | 6185 | 69 | 69 | 0.94% | 1.12% |  |
| D | 7319 | 6185 | 1281 | 1281 | 17.50% | 20.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2917820 | 20000.46 | 705 | 689 | 145.9 |
| A | 14 | 235 | 50687 | 342.8 | 705 | 689 | 145.9 |
| A | 9 | 191 | 44193 | 298.27 | 705 | 689 | 145.9 |
| B | 3 | 112 | 1365375 | 10099.17 | 679 | 659 | 135.1 |
| B | 15 | 201 | 235466 | 1737.62 | 679 | 659 | 135.1 |
| B | 0 | 155 | 27356 | 197.56 | 679 | 659 | 135.1 |
| C | 12 | 2 | 338268 | 2050.26 | 694 | 697 | 164.6 |
| C | 2 | 14 | 213369 | 1291.68 | 694 | 697 | 164.6 |
| C | 3 | 233 | 5138 | 26.97 | 694 | 697 | 164.6 |
| D | 1 | 52 | 3772431 | 23830.03 | 617 | 597 | 158.3 |
| D | 2 | 249 | 737434 | 4655.25 | 617 | 597 | 158.3 |
| D | 8 | 129 | 378682 | 2388.7 | 617 | 597 | 158.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

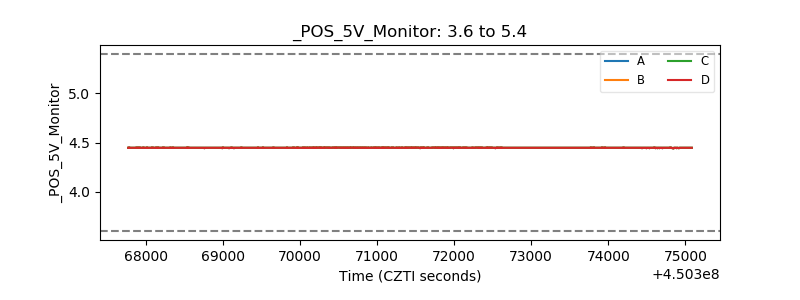

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
