| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_098T02_9000006174_46143cztM0_level2.fits | modeM0/AS1A13_098T02_9000006174_46143cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,690,560 | 107,012,160 |
| Size | 499.4 MB | 102.1 MB |
| Events in quadrant A | 6,539,456 | 688,229 |
| Events in quadrant B | 4,083,071 | 753,629 |
| Events in quadrant C | 3,499,751 | 718,352 |
| Events in quadrant D | 4,754,694 | 622,369 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23755 | 2 |
| B | 0 | 16409 | 2 |
| C | 0 | 15018 | 2 |
| D | 0 | 18736 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6558 | 410 | 6.251906% |
| B | 6558 | 119 | 1.814578% |
| C | 6558 | 113 | 1.723086% |
| D | 6558 | 411 | 6.267155% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7563 | 6559 | 214 | 214 | 2.83% | 3.26% |  |
| B | 7563 | 6559 | 20 | 20 | 0.26% | 0.30% |  |
| C | 7563 | 6559 | 72 | 72 | 0.95% | 1.10% |  |
| D | 7563 | 6559 | 272 | 272 | 3.60% | 4.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3125086 | 20499.33 | 739 | 723 | 152.4 |
| A | 13 | 248 | 487676 | 3194.96 | 739 | 723 | 152.4 |
| A | 14 | 235 | 33674 | 216.2 | 739 | 723 | 152.4 |
| B | 3 | 112 | 861890 | 5767.78 | 755 | 732 | 149.3 |
| B | 5 | 172 | 96922 | 644.25 | 755 | 732 | 149.3 |
| B | 0 | 155 | 52883 | 349.29 | 755 | 732 | 149.3 |
| C | 12 | 2 | 291153 | 1665.15 | 739 | 742 | 174.4 |
| C | 14 | 254 | 237860 | 1359.58 | 739 | 742 | 174.4 |
| C | 12 | 249 | 46749 | 263.79 | 739 | 742 | 174.4 |
| D | 5 | 235 | 588757 | 3239.13 | 714 | 694 | 181.5 |
| D | 2 | 249 | 438082 | 2409.19 | 714 | 694 | 181.5 |
| D | 13 | 249 | 220032 | 1208.14 | 714 | 694 | 181.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

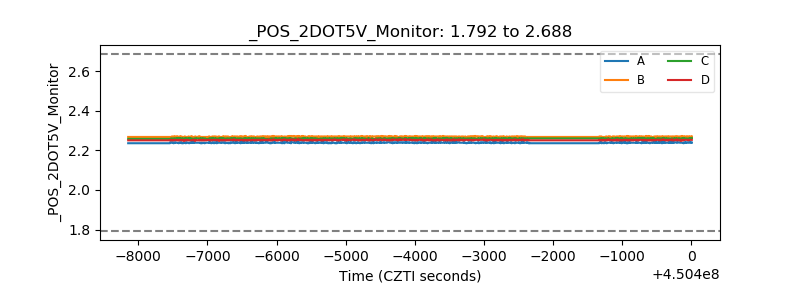

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
