| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_098T02_9000006174_46144cztM0_level2.fits | modeM0/AS1A13_098T02_9000006174_46144cztM0_level2_quad_clean.evt |
| Size (bytes) | 626,189,760 | 114,292,800 |
| Size | 597.2 MB | 109.0 MB |
| Events in quadrant A | 6,698,178 | 754,735 |
| Events in quadrant B | 4,777,939 | 794,565 |
| Events in quadrant C | 3,871,810 | 781,394 |
| Events in quadrant D | 7,268,905 | 623,842 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24731 | 2 |
| B | 0 | 18918 | 2 |
| C | 0 | 16591 | 2 |
| D | 0 | 26658 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7269 | 287 | 3.948273% |
| B | 7269 | 257 | 3.535562% |
| C | 7269 | 68 | 0.935479% |
| D | 7269 | 1091 | 15.008942% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8979 | 7271 | 40 | 40 | 0.45% | 0.55% |  |
| B | 8979 | 7271 | 46 | 46 | 0.51% | 0.63% |  |
| C | 8979 | 7271 | 22 | 22 | 0.25% | 0.30% |  |
| D | 8979 | 7271 | 877 | 877 | 9.77% | 12.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3382022 | 19543.31 | 823 | 805 | 173.0 |
| A | 9 | 191 | 38258 | 216.48 | 823 | 805 | 173.0 |
| A | 14 | 235 | 30568 | 172.03 | 823 | 805 | 173.0 |
| B | 3 | 112 | 1122186 | 6719.83 | 831 | 804 | 166.9 |
| B | 5 | 185 | 188674 | 1125.8 | 831 | 804 | 166.9 |
| B | 0 | 155 | 95556 | 567.79 | 831 | 804 | 166.9 |
| C | 3 | 9 | 361243 | 1848.54 | 821 | 824 | 195.0 |
| C | 12 | 2 | 199225 | 1017.57 | 821 | 824 | 195.0 |
| C | 12 | 249 | 52893 | 267.06 | 821 | 824 | 195.0 |
| D | 2 | 37 | 1412463 | 7194.97 | 770 | 744 | 196.2 |
| D | 5 | 235 | 920618 | 4688.23 | 770 | 744 | 196.2 |
| D | 1 | 52 | 799483 | 4070.85 | 770 | 744 | 196.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

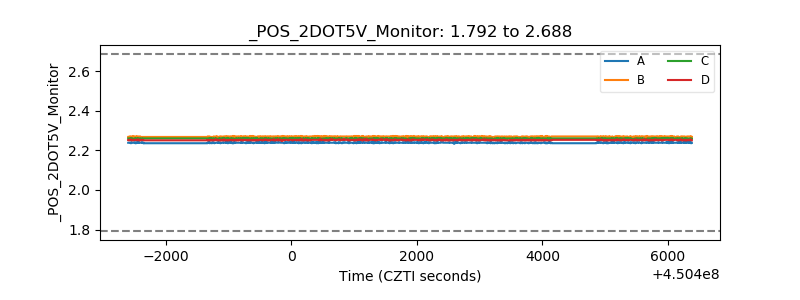

| +2.5 Volts monitor |  |

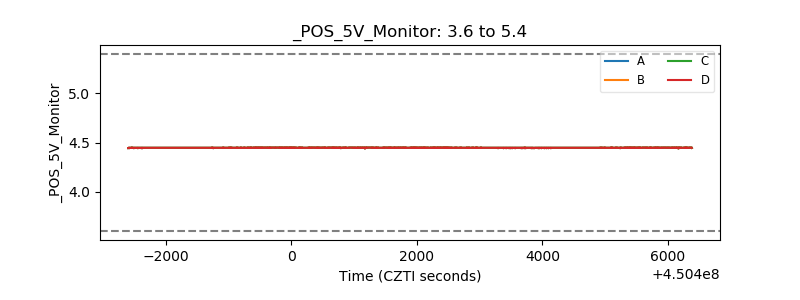

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
