| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T16_9000006178_46158cztM0_level2.fits | modeM0/AS1A13_092T16_9000006178_46158cztM0_level2_quad_clean.evt |
| Size (bytes) | 606,974,400 | 107,654,400 |
| Size | 578.9 MB | 102.7 MB |
| Events in quadrant A | 6,108,969 | 724,505 |
| Events in quadrant B | 3,741,965 | 757,358 |
| Events in quadrant C | 6,331,638 | 688,629 |
| Events in quadrant D | 5,762,062 | 617,310 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22660 | 2 |
| B | 0 | 15517 | 2 |
| C | 0 | 23512 | 2 |
| D | 0 | 21842 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6767 | 223 | 3.295404% |
| B | 6766 | 123 | 1.817913% |
| C | 6766 | 592 | 8.749631% |
| D | 6766 | 612 | 9.045226% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7662 | 6768 | 43 | 43 | 0.56% | 0.64% |  |
| B | 7661 | 6767 | 58 | 58 | 0.76% | 0.86% |  |
| C | 7661 | 6767 | 423 | 423 | 5.52% | 6.25% |  |
| D | 7661 | 6767 | 459 | 459 | 5.99% | 6.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3046401 | 19361.24 | 751 | 735 | 157.3 |
| A | 7 | 3 | 100729 | 635.66 | 751 | 735 | 157.3 |
| A | 9 | 191 | 27115 | 167.7 | 751 | 735 | 157.3 |
| B | 3 | 112 | 457208 | 3036.2 | 756 | 732 | 150.3 |
| B | 5 | 172 | 229927 | 1524.46 | 756 | 732 | 150.3 |
| B | 5 | 171 | 20386 | 130.73 | 756 | 732 | 150.3 |
| C | 14 | 254 | 3011404 | 17443.64 | 730 | 733 | 172.6 |
| C | 12 | 2 | 293789 | 1697.95 | 730 | 733 | 172.6 |
| C | 10 | 218 | 144717 | 834.23 | 730 | 733 | 172.6 |
| D | 2 | 249 | 1146238 | 6418.3 | 709 | 688 | 178.5 |
| D | 2 | 37 | 575535 | 3220.76 | 709 | 688 | 178.5 |
| D | 13 | 249 | 481844 | 2695.82 | 709 | 688 | 178.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

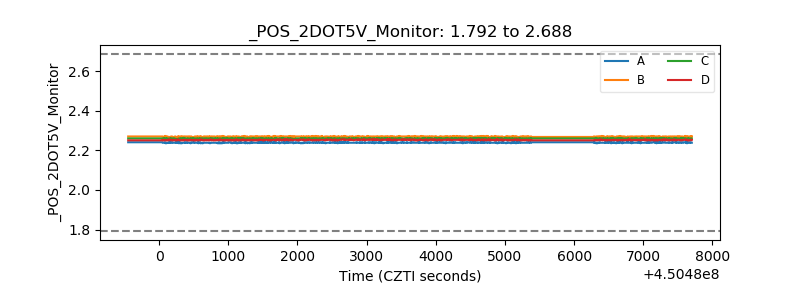

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
