| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T16_9000006178_46160cztM0_level2.fits | modeM0/AS1A13_092T16_9000006178_46160cztM0_level2_quad_clean.evt |
| Size (bytes) | 769,988,160 | 114,785,280 |
| Size | 734.3 MB | 109.5 MB |
| Events in quadrant A | 6,725,436 | 822,148 |
| Events in quadrant B | 4,323,240 | 841,970 |
| Events in quadrant C | 10,105,669 | 606,774 |
| Events in quadrant D | 6,747,505 | 664,136 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24925 | 0 |
| B | 0 | 17976 | 0 |
| C | 0 | 35413 | 0 |
| D | 0 | 25554 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7764 | 57 | 0.734158% |
| B | 7765 | 85 | 1.094656% |
| C | 7765 | 2505 | 32.260142% |
| D | 7764 | 907 | 11.682123% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7764 | 7764 | 19 | 19 | 0.24% | 0.24% |  |
| B | 7765 | 7765 | 17 | 17 | 0.22% | 0.22% |  |
| C | 7765 | 7765 | 1621 | 1621 | 20.88% | 20.88% |  |
| D | 7764 | 7764 | 787 | 787 | 10.14% | 10.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3073241 | 17005.19 | 865 | 849 | 180.7 |
| A | 13 | 248 | 212609 | 1172.06 | 865 | 849 | 180.7 |
| A | 9 | 191 | 41414 | 224.52 | 865 | 849 | 180.7 |
| B | 3 | 112 | 602497 | 3489.22 | 865 | 834 | 172.4 |
| B | 5 | 172 | 124554 | 717.49 | 865 | 834 | 172.4 |
| B | 15 | 201 | 96104 | 552.5 | 865 | 834 | 172.4 |
| C | 14 | 254 | 7062630 | 39340.99 | 763 | 766 | 179.5 |
| C | 12 | 2 | 30243 | 164.21 | 763 | 766 | 179.5 |
| C | 2 | 14 | 16156 | 85.74 | 763 | 766 | 179.5 |
| D | 2 | 37 | 1419558 | 6900.18 | 810 | 784 | 205.6 |
| D | 13 | 249 | 1164479 | 5659.61 | 810 | 784 | 205.6 |
| D | 2 | 249 | 533215 | 2589.47 | 810 | 784 | 205.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

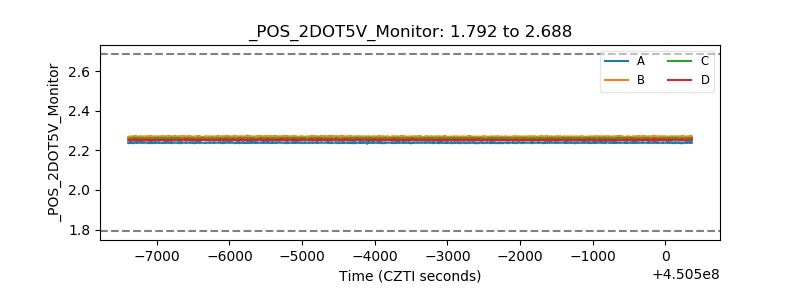

| +2.5 Volts monitor |  |

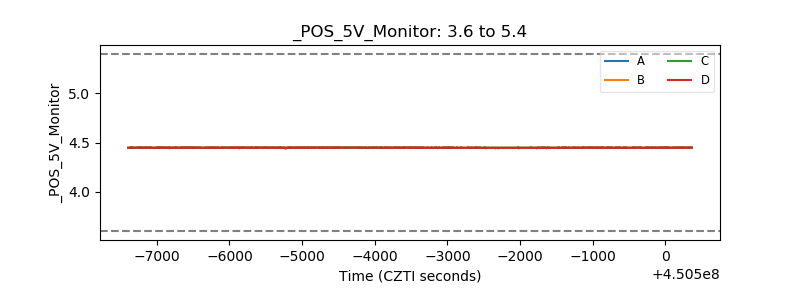

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
