| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T16_9000006178_46161cztM0_level2.fits | modeM0/AS1A13_092T16_9000006178_46161cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,232,000 | 69,134,400 |
| Size | 457.0 MB | 65.9 MB |
| Events in quadrant A | 3,953,444 | 501,054 |
| Events in quadrant B | 2,655,291 | 514,914 |
| Events in quadrant C | 7,392,770 | 305,635 |
| Events in quadrant D | 3,363,553 | 433,247 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14737 | 0 |
| B | 0 | 10889 | 0 |
| C | 0 | 25296 | 0 |
| D | 0 | 13490 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 96 | 0 |
| B | 0 | 96 | 0 |
| C | 0 | 96 | 0 |
| D | 0 | 96 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4817 | 9 | 0.186838% |
| B | 4818 | 24 | 0.498132% |
| C | 4818 | 2132 | 44.250726% |
| D | 4818 | 284 | 5.894562% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4817 | 4817 | 1 | 1 | 0.02% | 0.02% |  |
| B | 4818 | 4818 | 13 | 13 | 0.27% | 0.27% |  |
| C | 4817 | 4817 | 1544 | 1544 | 32.05% | 32.05% |  |
| D | 4818 | 4818 | 233 | 233 | 4.84% | 4.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1893099 | 17246.56 | 519 | 508 | 109.7 |
| A | 9 | 191 | 20148 | 178.97 | 519 | 508 | 109.7 |
| A | 0 | 247 | 15097 | 132.94 | 519 | 508 | 109.7 |
| B | 3 | 112 | 427530 | 4163.43 | 516 | 499 | 102.6 |
| B | 5 | 172 | 116254 | 1128.58 | 516 | 499 | 102.6 |
| B | 15 | 201 | 45674 | 440.44 | 516 | 499 | 102.6 |
| C | 14 | 254 | 5719633 | 58656.05 | 410 | 411 | 97.5 |
| C | 12 | 2 | 40781 | 414.03 | 410 | 411 | 97.5 |
| C | 2 | 14 | 10481 | 103.28 | 410 | 411 | 97.5 |
| D | 2 | 249 | 434368 | 3451.67 | 496 | 479 | 125.7 |
| D | 13 | 249 | 403489 | 3206.02 | 496 | 479 | 125.7 |
| D | 12 | 218 | 227943 | 1809.52 | 496 | 479 | 125.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

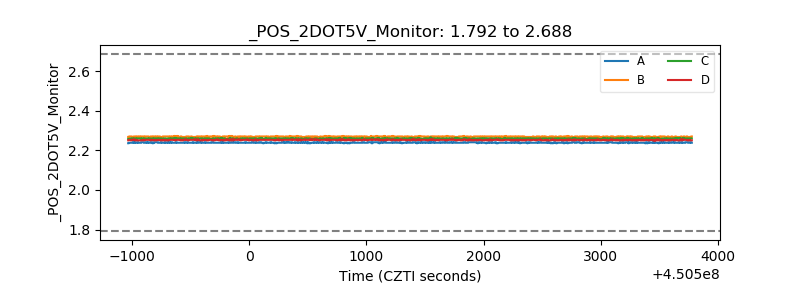

| +2.5 Volts monitor |  |

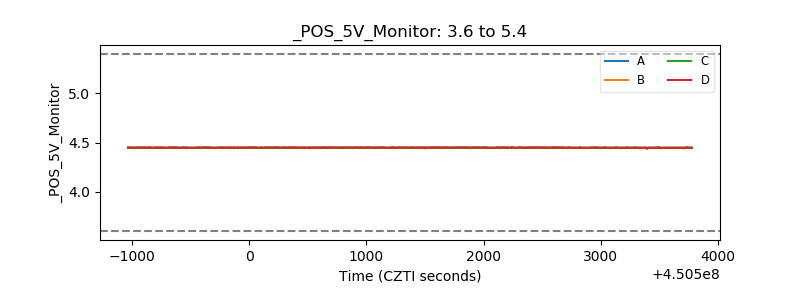

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
