| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_194T01_9000006180_46164cztM0_level2.fits | modeM0/AS1T05_194T01_9000006180_46164cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,259,326,080 | 200,329,920 |
| Size | 1.2 GB | 191.0 MB |
| Events in quadrant A | 11,697,072 | 1,393,701 |
| Events in quadrant B | 8,302,065 | 1,422,998 |
| Events in quadrant C | 14,379,055 | 1,107,452 |
| Events in quadrant D | 11,183,227 | 1,196,815 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 280 | 0 |
| B | 0 | 280 | 0 |
| C | 0 | 280 | 0 |
| D | 0 | 280 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42719 | 3 |
| B | 0 | 33415 | 5 |
| C | 0 | 52170 | 3 |
| D | 0 | 42609 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13659 | 481 | 3.521488% |
| B | 13659 | 597 | 4.370745% |
| C | 13659 | 3267 | 23.918296% |
| D | 13659 | 1185 | 8.675599% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14189 | 13662 | 13 | 13 | 0.09% | 0.10% |  |
| B | 14189 | 13663 | 143 | 143 | 1.01% | 1.05% |  |
| C | 14189 | 13662 | 1986 | 1986 | 14.00% | 14.54% |  |
| D | 14189 | 13662 | 716 | 716 | 5.05% | 5.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5613547 | 18012.89 | 1504 | 1469 | 311.6 |
| A | 7 | 3 | 126182 | 400.29 | 1504 | 1469 | 311.6 |
| A | 0 | 247 | 69153 | 217.24 | 1504 | 1469 | 311.6 |
| B | 3 | 112 | 1694888 | 5802.86 | 1494 | 1445 | 291.8 |
| B | 5 | 172 | 553279 | 1890.95 | 1494 | 1445 | 291.8 |
| B | 15 | 201 | 72454 | 243.32 | 1494 | 1445 | 291.8 |
| C | 14 | 254 | 8757842 | 27894.03 | 1343 | 1348 | 313.9 |
| C | 12 | 2 | 233997 | 741.11 | 1343 | 1348 | 313.9 |
| C | 10 | 218 | 98802 | 310.44 | 1343 | 1348 | 313.9 |
| D | 1 | 52 | 1967930 | 5374.87 | 1456 | 1408 | 365.9 |
| D | 13 | 249 | 985454 | 2689.58 | 1456 | 1408 | 365.9 |
| D | 5 | 235 | 832229 | 2270.79 | 1456 | 1408 | 365.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

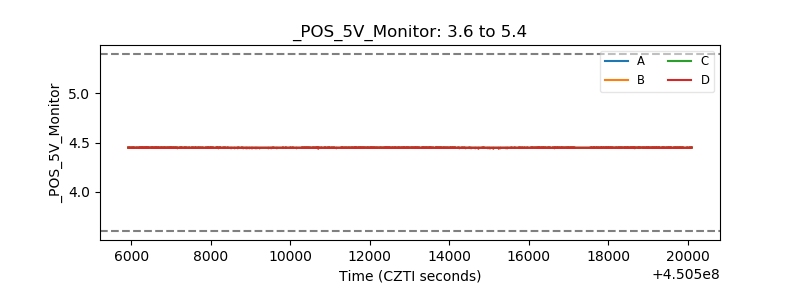

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
