| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_194T01_9000006180_46180cztM0_level2.fits | modeM0/AS1T05_194T01_9000006180_46180cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,681,536,960 | 305,196,480 |
| Size | 1.6 GB | 291.1 MB |
| Events in quadrant A | 17,210,636 | 2,078,676 |
| Events in quadrant B | 12,513,754 | 2,125,118 |
| Events in quadrant C | 9,623,314 | 2,050,726 |
| Events in quadrant D | 21,344,486 | 1,599,630 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 404 | 0 |
| B | 0 | 404 | 0 |
| C | 0 | 404 | 0 |
| D | 0 | 404 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 63458 | 2 |
| B | 0 | 50204 | 5 |
| C | 0 | 43295 | 2 |
| D | 0 | 77292 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 20123 | 614 | 3.051235% |
| B | 20121 | 857 | 4.259232% |
| C | 20123 | 342 | 1.699548% |
| D | 20124 | 3622 | 17.998410% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20418 | 20124 | 89 | 89 | 0.44% | 0.44% |  |
| B | 20418 | 20124 | 255 | 255 | 1.25% | 1.27% |  |
| C | 20418 | 20125 | 74 | 74 | 0.36% | 0.37% |  |
| D | 20419 | 20125 | 2821 | 2821 | 13.82% | 14.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8127614 | 17557.7 | 2225 | 2172 | 462.8 |
| A | 9 | 191 | 341107 | 732.38 | 2225 | 2172 | 462.8 |
| A | 0 | 247 | 78496 | 164.92 | 2225 | 2172 | 462.8 |
| B | 3 | 112 | 2564562 | 5962.49 | 2209 | 2139 | 429.8 |
| B | 15 | 201 | 639240 | 1482.47 | 2209 | 2139 | 429.8 |
| B | 0 | 155 | 401112 | 928.37 | 2209 | 2139 | 429.8 |
| C | 14 | 254 | 429368 | 837.23 | 2194 | 2201 | 510.2 |
| C | 12 | 2 | 408667 | 796.66 | 2194 | 2201 | 510.2 |
| C | 3 | 233 | 170318 | 329.5 | 2194 | 2201 | 510.2 |
| D | 1 | 52 | 5790084 | 11479.33 | 2014 | 1948 | 504.2 |
| D | 2 | 249 | 3920412 | 7771.3 | 2014 | 1948 | 504.2 |
| D | 2 | 37 | 1495404 | 2961.9 | 2014 | 1948 | 504.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

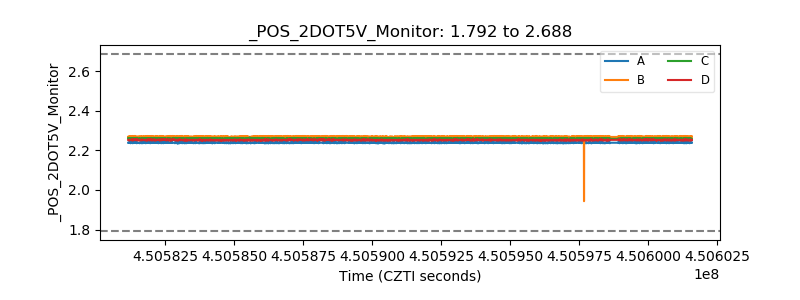

| +2.5 Volts monitor |  |

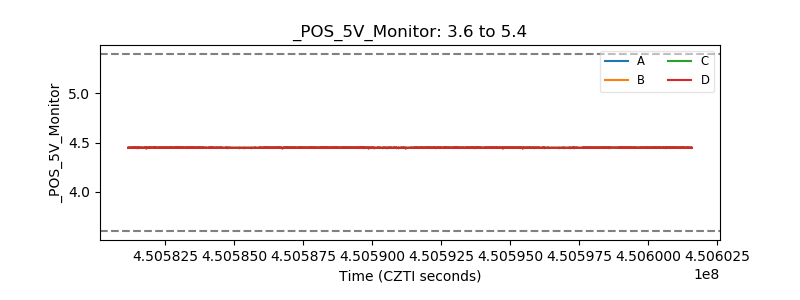

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
