| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T40_9000006182_46183cztM0_level2.fits | modeM0/AS1A13_093T40_9000006182_46183cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,449,920 | 104,028,480 |
| Size | 497.3 MB | 99.2 MB |
| Events in quadrant A | 5,801,321 | 707,812 |
| Events in quadrant B | 3,493,333 | 735,225 |
| Events in quadrant C | 2,944,364 | 698,596 |
| Events in quadrant D | 6,583,668 | 576,557 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21201 | 1 |
| B | 0 | 14336 | 3 |
| C | 0 | 13037 | 1 |
| D | 0 | 23843 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6189 | 238 | 3.845532% |
| B | 6189 | 113 | 1.825820% |
| C | 6189 | 49 | 0.791727% |
| D | 6189 | 848 | 13.701729% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7324 | 6189 | 64 | 64 | 0.87% | 1.03% |  |
| B | 7324 | 6189 | 22 | 22 | 0.30% | 0.36% |  |
| C | 7324 | 6190 | 8 | 8 | 0.11% | 0.13% |  |
| D | 7324 | 6189 | 758 | 758 | 10.35% | 12.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2919694 | 19750.3 | 709 | 695 | 147.8 |
| A | 9 | 191 | 121383 | 816.59 | 709 | 695 | 147.8 |
| A | 13 | 254 | 10175 | 64.14 | 709 | 695 | 147.8 |
| B | 3 | 112 | 431632 | 3172.62 | 706 | 687 | 135.8 |
| B | 15 | 201 | 146845 | 1076.02 | 706 | 687 | 135.8 |
| B | 5 | 172 | 62861 | 457.73 | 706 | 687 | 135.8 |
| C | 12 | 2 | 115745 | 715.09 | 688 | 691 | 160.9 |
| C | 3 | 233 | 87123 | 537.2 | 688 | 691 | 160.9 |
| C | 14 | 254 | 40716 | 248.77 | 688 | 691 | 160.9 |
| D | 1 | 52 | 2247143 | 13397.32 | 665 | 642 | 167.7 |
| D | 2 | 37 | 609528 | 3631.17 | 665 | 642 | 167.7 |
| D | 5 | 222 | 539779 | 3215.22 | 665 | 642 | 167.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

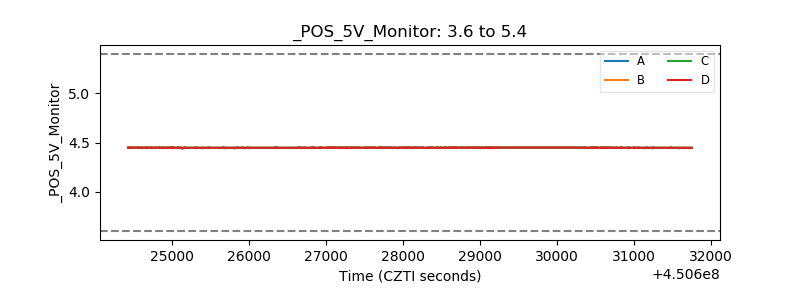

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
