| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T40_9000006182_46189cztM0_level2.fits | modeM0/AS1A13_093T40_9000006182_46189cztM0_level2_quad_clean.evt |
| Size (bytes) | 592,896,960 | 130,256,640 |
| Size | 565.4 MB | 124.2 MB |
| Events in quadrant A | 7,087,123 | 872,807 |
| Events in quadrant B | 4,843,538 | 898,341 |
| Events in quadrant C | 3,764,867 | 855,762 |
| Events in quadrant D | 5,612,687 | 744,562 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26523 | 1 |
| B | 0 | 20030 | 1 |
| C | 0 | 17375 | 1 |
| D | 0 | 22403 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8239 | 322 | 3.908241% |
| B | 8240 | 282 | 3.422330% |
| C | 8240 | 89 | 1.080097% |
| D | 8240 | 557 | 6.759709% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8574 | 8240 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8575 | 8241 | 44 | 44 | 0.51% | 0.53% |  |
| C | 8575 | 8241 | 17 | 17 | 0.20% | 0.21% |  |
| D | 8574 | 8240 | 386 | 386 | 4.50% | 4.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3413609 | 17755.33 | 926 | 903 | 192.2 |
| A | 0 | 247 | 30713 | 155.09 | 926 | 903 | 192.2 |
| A | 13 | 248 | 28338 | 142.74 | 926 | 903 | 192.2 |
| B | 3 | 112 | 840110 | 4569.01 | 927 | 894 | 183.7 |
| B | 5 | 172 | 169629 | 918.66 | 927 | 894 | 183.7 |
| B | 4 | 171 | 61329 | 329.03 | 927 | 894 | 183.7 |
| C | 12 | 2 | 115886 | 535.96 | 909 | 910 | 214.5 |
| C | 14 | 254 | 48973 | 224.05 | 909 | 910 | 214.5 |
| C | 11 | 16 | 21345 | 95.26 | 909 | 910 | 214.5 |
| D | 8 | 128 | 840678 | 3785.24 | 891 | 860 | 221.9 |
| D | 1 | 52 | 779076 | 3507.58 | 891 | 860 | 221.9 |
| D | 13 | 249 | 295680 | 1328.82 | 891 | 860 | 221.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

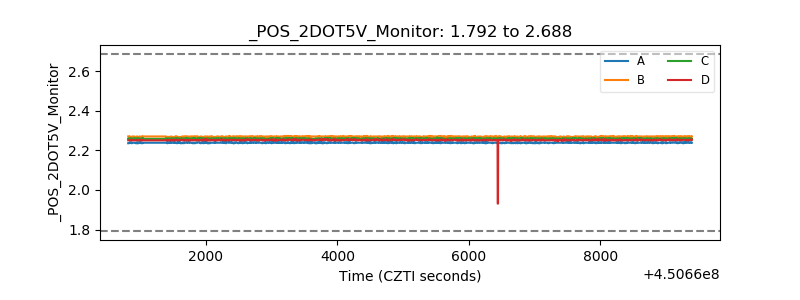

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
