| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T40_9000006182_46193cztM0_level2.fits | modeM0/AS1A13_093T40_9000006182_46193cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,131,071,040 | 223,450,560 |
| Size | 1.1 GB | 213.1 MB |
| Events in quadrant A | 13,437,469 | 1,452,593 |
| Events in quadrant B | 10,138,772 | 1,525,389 |
| Events in quadrant C | 6,470,923 | 1,478,854 |
| Events in quadrant D | 10,709,097 | 1,313,636 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 292 | 0 |
| B | 0 | 292 | 0 |
| C | 0 | 292 | 0 |
| D | 0 | 292 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48648 | 2 |
| B | 0 | 39842 | 2 |
| C | 0 | 29983 | 2 |
| D | 0 | 41737 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14406 | 640 | 4.442593% |
| B | 14407 | 558 | 3.873117% |
| C | 14407 | 116 | 0.805164% |
| D | 14406 | 704 | 4.886853% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15141 | 14408 | 333 | 333 | 2.20% | 2.31% |  |
| B | 15142 | 14409 | 284 | 284 | 1.88% | 1.97% |  |
| C | 15142 | 14410 | 51 | 51 | 0.34% | 0.35% |  |
| D | 15141 | 14409 | 590 | 590 | 3.90% | 4.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5972808 | 18707.13 | 1548 | 1512 | 319.2 |
| A | 0 | 247 | 1033326 | 3232.51 | 1548 | 1512 | 319.2 |
| A | 9 | 191 | 227712 | 708.65 | 1548 | 1512 | 319.2 |
| B | 3 | 112 | 3286305 | 10851.09 | 1550 | 1499 | 302.7 |
| B | 5 | 172 | 303458 | 997.5 | 1550 | 1499 | 302.7 |
| B | 4 | 171 | 239308 | 785.58 | 1550 | 1499 | 302.7 |
| C | 12 | 2 | 306429 | 840.83 | 1547 | 1553 | 362.6 |
| C | 11 | 16 | 53798 | 144.09 | 1547 | 1553 | 362.6 |
| C | 14 | 254 | 49736 | 132.89 | 1547 | 1553 | 362.6 |
| D | 1 | 52 | 2136299 | 5587.51 | 1525 | 1481 | 382.1 |
| D | 13 | 249 | 1089250 | 2847.04 | 1525 | 1481 | 382.1 |
| D | 10 | 255 | 686220 | 1792.18 | 1525 | 1481 | 382.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

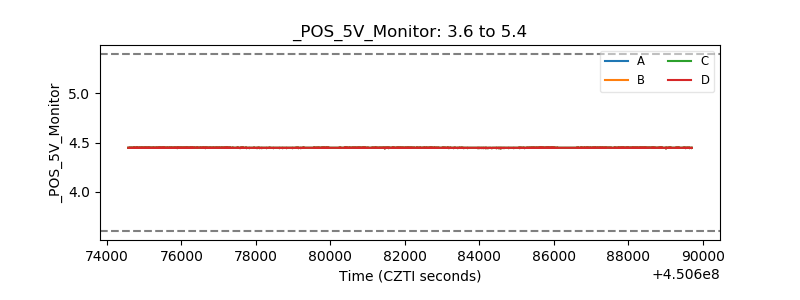

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
