| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T40_9000006182_46196cztM0_level2.fits | modeM0/AS1A13_093T40_9000006182_46196cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,296,960 | 98,331,840 |
| Size | 467.6 MB | 93.8 MB |
| Events in quadrant A | 5,557,136 | 660,353 |
| Events in quadrant B | 3,560,600 | 675,450 |
| Events in quadrant C | 2,776,595 | 655,940 |
| Events in quadrant D | 5,779,098 | 557,150 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20136 | 1 |
| B | 0 | 14603 | 1 |
| C | 0 | 12875 | 1 |
| D | 0 | 21416 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6130 | 156 | 2.544861% |
| B | 6131 | 164 | 2.674931% |
| C | 6131 | 64 | 1.043875% |
| D | 6131 | 673 | 10.977002% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7110 | 6130 | 8 | 8 | 0.11% | 0.13% |  |
| B | 7111 | 6132 | 95 | 95 | 1.34% | 1.55% |  |
| C | 7111 | 6132 | 33 | 33 | 0.46% | 0.54% |  |
| D | 7111 | 6131 | 534 | 534 | 7.51% | 8.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2724437 | 19411.93 | 679 | 663 | 140.3 |
| A | 0 | 247 | 135789 | 963.02 | 679 | 663 | 140.3 |
| A | 13 | 248 | 32296 | 225.44 | 679 | 663 | 140.3 |
| B | 3 | 112 | 622398 | 4729.75 | 668 | 648 | 131.5 |
| B | 5 | 172 | 265181 | 2012.34 | 668 | 648 | 131.5 |
| B | 12 | 111 | 16835 | 123.14 | 668 | 648 | 131.5 |
| C | 12 | 2 | 186939 | 1198.52 | 660 | 663 | 155.4 |
| C | 14 | 254 | 6098 | 34.97 | 660 | 663 | 155.4 |
| C | 3 | 233 | 5433 | 30.69 | 660 | 663 | 155.4 |
| D | 1 | 52 | 2008246 | 12528.17 | 643 | 623 | 160.2 |
| D | 2 | 249 | 533970 | 3328.25 | 643 | 623 | 160.2 |
| D | 13 | 249 | 353475 | 2201.9 | 643 | 623 | 160.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

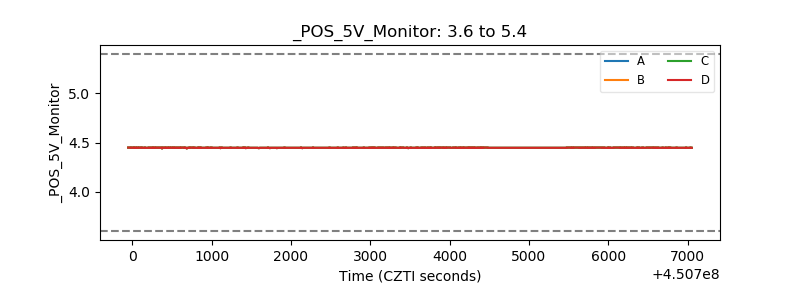

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
