| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T40_9000006182_46203cztM0_level2.fits | modeM0/AS1A13_093T40_9000006182_46203cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,104,640 | 122,178,240 |
| Size | 509.4 MB | 116.5 MB |
| Events in quadrant A | 6,524,401 | 816,034 |
| Events in quadrant B | 4,105,381 | 835,367 |
| Events in quadrant C | 3,386,879 | 797,164 |
| Events in quadrant D | 5,161,831 | 719,214 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24391 | 2 |
| B | 0 | 17172 | 2 |
| C | 0 | 15930 | 2 |
| D | 0 | 20660 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7636 | 256 | 3.352541% |
| B | 7637 | 196 | 2.566453% |
| C | 7637 | 44 | 0.576142% |
| D | 7637 | 316 | 4.137750% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7666 | 7638 | 6 | 6 | 0.08% | 0.08% |  |
| B | 7667 | 7639 | 20 | 20 | 0.26% | 0.26% |  |
| C | 7667 | 7639 | 8 | 8 | 0.10% | 0.10% |  |
| D | 7667 | 7639 | 212 | 212 | 2.77% | 2.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3149097 | 17782.6 | 850 | 830 | 177.0 |
| A | 0 | 247 | 60887 | 339.22 | 850 | 830 | 177.0 |
| A | 9 | 191 | 14509 | 77.26 | 850 | 830 | 177.0 |
| B | 3 | 112 | 614571 | 3697.26 | 847 | 819 | 166.0 |
| B | 5 | 172 | 82170 | 490.06 | 847 | 819 | 166.0 |
| B | 0 | 155 | 24300 | 141.45 | 847 | 819 | 166.0 |
| C | 12 | 2 | 121824 | 622.71 | 831 | 832 | 194.3 |
| C | 14 | 254 | 20674 | 102.12 | 831 | 832 | 194.3 |
| C | 13 | 61 | 5505 | 24.05 | 831 | 832 | 194.3 |
| D | 1 | 52 | 1209183 | 5897.8 | 823 | 797 | 204.9 |
| D | 2 | 249 | 268581 | 1306.98 | 823 | 797 | 204.9 |
| D | 13 | 249 | 224821 | 1093.4 | 823 | 797 | 204.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

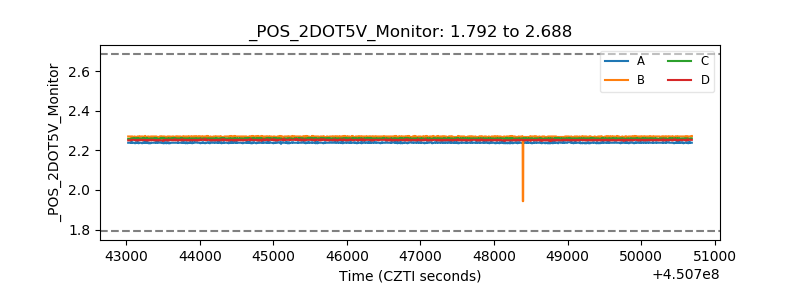

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
