| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T12_9000006184_46212cztM0_level2.fits | modeM0/AS1A13_093T12_9000006184_46212cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,196,800 | 113,777,280 |
| Size | 526.6 MB | 108.5 MB |
| Events in quadrant A | 6,449,091 | 758,217 |
| Events in quadrant B | 4,398,488 | 789,123 |
| Events in quadrant C | 3,562,473 | 765,350 |
| Events in quadrant D | 5,513,564 | 667,457 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23660 | 2 |
| B | 0 | 17582 | 2 |
| C | 0 | 15124 | 2 |
| D | 0 | 20910 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6668 | 355 | 5.323935% |
| B | 6669 | 304 | 4.558405% |
| C | 6669 | 171 | 2.564103% |
| D | 6669 | 587 | 8.801919% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7783 | 6668 | 26 | 26 | 0.33% | 0.39% |  |
| B | 7784 | 6669 | 129 | 129 | 1.66% | 1.93% |  |
| C | 7784 | 6669 | 73 | 73 | 0.94% | 1.09% |  |
| D | 7784 | 6669 | 420 | 420 | 5.40% | 6.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3164917 | 19604.16 | 783 | 766 | 161.4 |
| A | 13 | 248 | 97453 | 599.04 | 783 | 766 | 161.4 |
| A | 9 | 191 | 74668 | 457.88 | 783 | 766 | 161.4 |
| B | 3 | 112 | 836716 | 5490.94 | 781 | 757 | 152.2 |
| B | 5 | 255 | 236642 | 1549.4 | 781 | 757 | 152.2 |
| B | 5 | 172 | 123398 | 805.56 | 781 | 757 | 152.2 |
| C | 12 | 2 | 218842 | 1210.33 | 776 | 783 | 180.2 |
| C | 14 | 254 | 135903 | 749.98 | 776 | 783 | 180.2 |
| C | 10 | 218 | 60101 | 329.24 | 776 | 783 | 180.2 |
| D | 1 | 52 | 1370339 | 7355.04 | 759 | 738 | 186.2 |
| D | 5 | 235 | 484768 | 2599.34 | 759 | 738 | 186.2 |
| D | 8 | 128 | 195838 | 1047.73 | 759 | 738 | 186.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

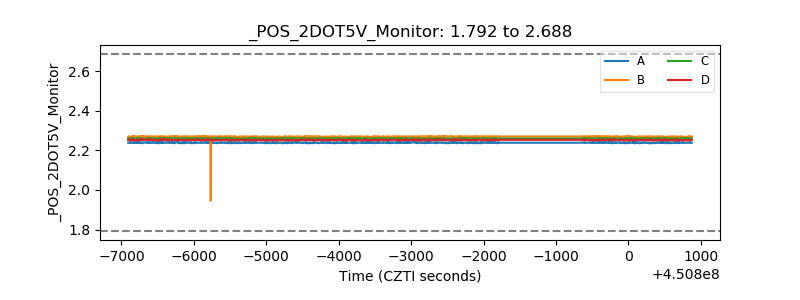

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
