| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_065T03_9000006186_46228cztM0_level2.fits | modeM0/AS1A13_065T03_9000006186_46228cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,787,520 | 118,411,200 |
| Size | 496.7 MB | 112.9 MB |
| Events in quadrant A | 6,926,366 | 783,298 |
| Events in quadrant B | 4,301,131 | 839,023 |
| Events in quadrant C | 3,749,654 | 781,972 |
| Events in quadrant D | 3,782,808 | 716,044 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25518 | 2 |
| B | 0 | 17162 | 2 |
| C | 0 | 15415 | 2 |
| D | 0 | 15524 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6680 | 473 | 7.080838% |
| B | 6679 | 196 | 2.934571% |
| C | 6679 | 210 | 3.144183% |
| D | 6679 | 205 | 3.069322% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7830 | 6680 | 112 | 112 | 1.43% | 1.68% |  |
| B | 7829 | 6679 | 31 | 31 | 0.40% | 0.46% |  |
| C | 7829 | 6679 | 113 | 113 | 1.44% | 1.69% |  |
| D | 7829 | 6679 | 86 | 86 | 1.10% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3323196 | 19344.94 | 829 | 812 | 171.7 |
| A | 0 | 247 | 244504 | 1418.92 | 829 | 812 | 171.7 |
| A | 7 | 3 | 90171 | 520.3 | 829 | 812 | 171.7 |
| B | 3 | 112 | 694769 | 4240.49 | 834 | 811 | 163.7 |
| B | 10 | 246 | 131505 | 798.62 | 834 | 811 | 163.7 |
| B | 5 | 255 | 59767 | 360.26 | 834 | 811 | 163.7 |
| C | 12 | 2 | 287128 | 1486.44 | 818 | 824 | 192.6 |
| C | 14 | 254 | 247072 | 1278.48 | 818 | 824 | 192.6 |
| C | 1 | 3 | 24057 | 120.62 | 818 | 824 | 192.6 |
| D | 13 | 249 | 244694 | 1192.13 | 821 | 799 | 204.6 |
| D | 5 | 235 | 77471 | 374.76 | 821 | 799 | 204.6 |
| D | 2 | 249 | 62848 | 303.29 | 821 | 799 | 204.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

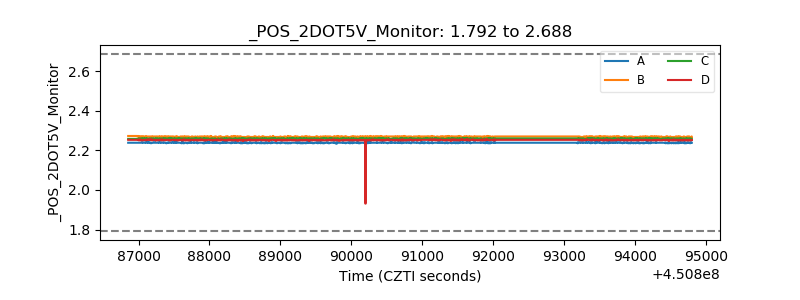

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
