| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_065T07_9000006188_46229cztM0_level2.fits | modeM0/AS1A13_065T07_9000006188_46229cztM0_level2_quad_clean.evt |
| Size (bytes) | 166,919,040 | 31,970,880 |
| Size | 159.2 MB | 30.5 MB |
| Events in quadrant A | 2,375,207 | 203,269 |
| Events in quadrant B | 1,286,351 | 210,772 |
| Events in quadrant C | 1,175,209 | 202,138 |
| Events in quadrant D | 1,159,693 | 185,133 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8583 | 1 |
| B | 0 | 5265 | 1 |
| C | 0 | 5043 | 1 |
| D | 0 | 5037 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 46 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2317 | 147 | 6.344411% |
| B | 2317 | 37 | 1.596893% |
| C | 2317 | 13 | 0.561070% |
| D | 2316 | 26 | 1.122625% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3497 | 2317 | 24 | 24 | 0.69% | 1.04% |  |
| B | 3497 | 2318 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3497 | 2318 | 4 | 4 | 0.11% | 0.17% |  |
| D | 3496 | 2317 | 3 | 3 | 0.09% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1227485 | 19674.27 | 291 | 284 | 62.4 |
| A | 7 | 3 | 11460 | 179.17 | 291 | 284 | 62.4 |
| A | 9 | 191 | 8830 | 137.01 | 291 | 284 | 62.4 |
| B | 3 | 112 | 83827 | 1401.42 | 292 | 283 | 59.6 |
| B | 0 | 189 | 11215 | 183.38 | 292 | 283 | 59.6 |
| B | 0 | 174 | 8048 | 130.25 | 292 | 283 | 59.6 |
| C | 12 | 2 | 45416 | 655.7 | 287 | 287 | 68.8 |
| C | 1 | 3 | 8637 | 121.32 | 287 | 287 | 68.8 |
| C | 9 | 69 | 2461 | 31.59 | 287 | 287 | 68.8 |
| D | 2 | 249 | 52551 | 705.92 | 287 | 278 | 74.0 |
| D | 2 | 234 | 11589 | 152.75 | 287 | 278 | 74.0 |
| D | 2 | 233 | 6490 | 83.89 | 287 | 278 | 74.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

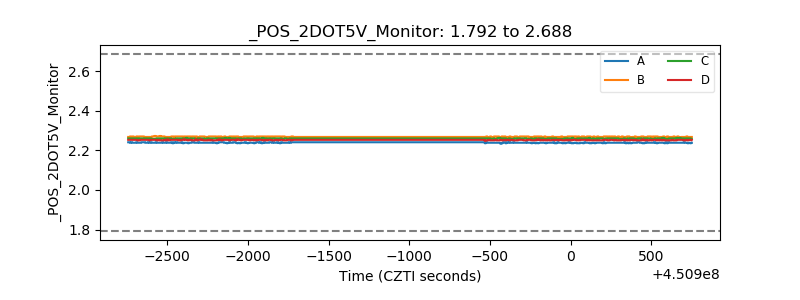

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
