| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_065T07_9000006188_46230cztM0_level2.fits | modeM0/AS1A13_065T07_9000006188_46230cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,038,720 | 108,944,640 |
| Size | 444.4 MB | 103.9 MB |
| Events in quadrant A | 6,320,793 | 717,551 |
| Events in quadrant B | 3,518,733 | 762,839 |
| Events in quadrant C | 3,310,438 | 718,917 |
| Events in quadrant D | 3,590,833 | 641,026 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23173 | 0 |
| B | 0 | 14628 | 0 |
| C | 0 | 14589 | 0 |
| D | 0 | 15554 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6573 | 252 | 3.833866% |
| B | 6573 | 69 | 1.049749% |
| C | 6573 | 123 | 1.871292% |
| D | 6573 | 257 | 3.909935% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7558 | 6573 | 48 | 48 | 0.64% | 0.73% |  |
| B | 7558 | 6573 | 20 | 20 | 0.26% | 0.30% |  |
| C | 7558 | 6574 | 117 | 117 | 1.55% | 1.78% |  |
| D | 7558 | 6574 | 243 | 243 | 3.22% | 3.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3175630 | 20674.21 | 741 | 725 | 153.6 |
| A | 0 | 247 | 200172 | 1298.75 | 741 | 725 | 153.6 |
| A | 7 | 3 | 24641 | 155.74 | 741 | 725 | 153.6 |
| B | 3 | 112 | 401098 | 2727.83 | 748 | 724 | 146.8 |
| B | 8 | 234 | 51418 | 345.39 | 748 | 724 | 146.8 |
| B | 5 | 172 | 47849 | 321.07 | 748 | 724 | 146.8 |
| C | 14 | 254 | 282655 | 1646.17 | 723 | 727 | 171.3 |
| C | 12 | 2 | 178997 | 1040.91 | 723 | 727 | 171.3 |
| C | 1 | 3 | 32463 | 185.31 | 723 | 727 | 171.3 |
| D | 10 | 204 | 374260 | 2052.24 | 720 | 698 | 182.0 |
| D | 13 | 249 | 334977 | 1836.43 | 720 | 698 | 182.0 |
| D | 2 | 249 | 54029 | 292.99 | 720 | 698 | 182.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

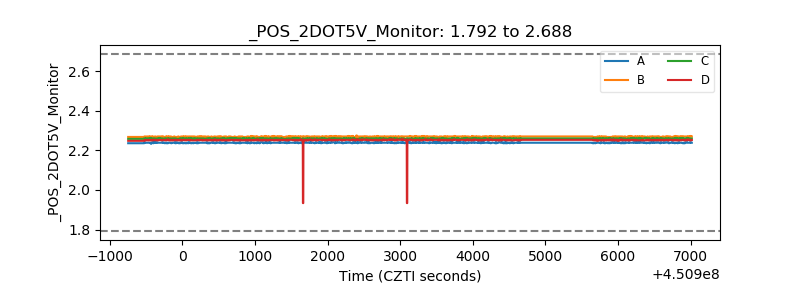

| +2.5 Volts monitor |  |

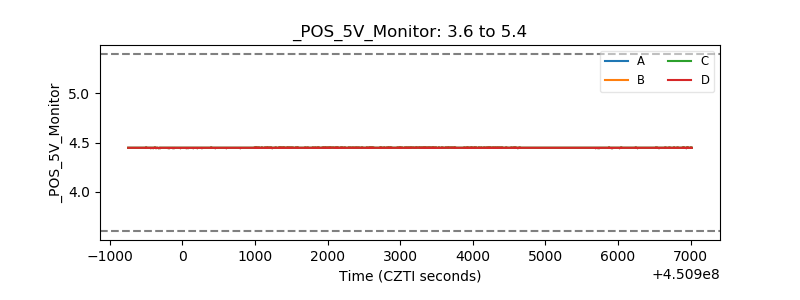

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
