| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_065T07_9000006188_46236cztM0_level2.fits | modeM0/AS1A13_065T07_9000006188_46236cztM0_level2_quad_clean.evt |
| Size (bytes) | 775,169,280 | 160,073,280 |
| Size | 739.3 MB | 152.7 MB |
| Events in quadrant A | 9,007,964 | 1,067,062 |
| Events in quadrant B | 5,377,669 | 1,105,810 |
| Events in quadrant C | 4,582,993 | 1,061,378 |
| Events in quadrant D | 8,927,610 | 898,082 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32628 | 1 |
| B | 0 | 22580 | 1 |
| C | 0 | 21469 | 1 |
| D | 0 | 33709 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 208 | 0 |
| B | 0 | 208 | 0 |
| C | 0 | 208 | 0 |
| D | 0 | 208 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10310 | 189 | 1.833172% |
| B | 10311 | 168 | 1.629328% |
| C | 10311 | 137 | 1.328678% |
| D | 10311 | 1051 | 10.192998% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10660 | 10310 | 4 | 4 | 0.04% | 0.04% |  |
| B | 10661 | 10311 | 22 | 22 | 0.21% | 0.21% |  |
| C | 10661 | 10311 | 34 | 34 | 0.32% | 0.33% |  |
| D | 10661 | 10311 | 761 | 761 | 7.14% | 7.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4366918 | 18608.61 | 1131 | 1106 | 234.6 |
| A | 0 | 247 | 102814 | 433.51 | 1131 | 1106 | 234.6 |
| A | 7 | 3 | 84536 | 355.61 | 1131 | 1106 | 234.6 |
| B | 3 | 112 | 808251 | 3662.96 | 1124 | 1088 | 220.4 |
| B | 5 | 32 | 40795 | 180.19 | 1124 | 1088 | 220.4 |
| B | 12 | 111 | 28838 | 125.93 | 1124 | 1088 | 220.4 |
| C | 12 | 2 | 178759 | 678.98 | 1113 | 1116 | 261.6 |
| C | 1 | 3 | 56759 | 212.68 | 1113 | 1116 | 261.6 |
| C | 13 | 61 | 7604 | 24.8 | 1113 | 1116 | 261.6 |
| D | 1 | 52 | 2618243 | 9677.91 | 1072 | 1036 | 270.4 |
| D | 5 | 235 | 1070246 | 3953.73 | 1072 | 1036 | 270.4 |
| D | 5 | 33 | 462281 | 1705.59 | 1072 | 1036 | 270.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

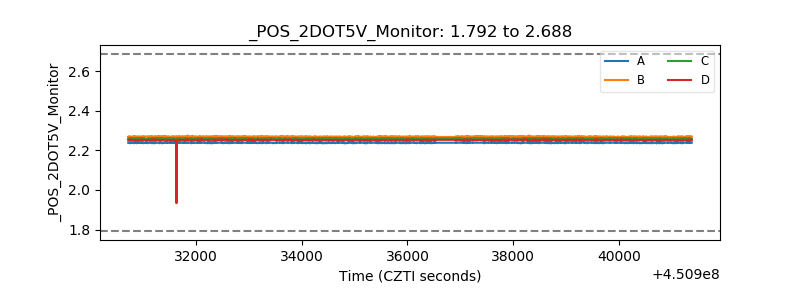

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
