| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_065T07_9000006188_46237cztM0_level2.fits | modeM0/AS1A13_065T07_9000006188_46237cztM0_level2_quad_clean.evt |
| Size (bytes) | 642,375,360 | 144,561,600 |
| Size | 612.6 MB | 137.9 MB |
| Events in quadrant A | 8,599,726 | 947,715 |
| Events in quadrant B | 4,844,026 | 996,925 |
| Events in quadrant C | 4,188,573 | 961,133 |
| Events in quadrant D | 5,435,528 | 834,851 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31281 | 1 |
| B | 0 | 20197 | 1 |
| C | 0 | 19122 | 1 |
| D | 0 | 22659 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 188 | 0 |
| B | 0 | 188 | 0 |
| C | 0 | 188 | 0 |
| D | 0 | 188 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9168 | 354 | 3.861257% |
| B | 9168 | 188 | 2.050611% |
| C | 9168 | 143 | 1.559773% |
| D | 9169 | 565 | 6.162068% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10483 | 9168 | 18 | 18 | 0.17% | 0.20% |  |
| B | 10483 | 9168 | 18 | 18 | 0.17% | 0.20% |  |
| C | 10483 | 9168 | 26 | 26 | 0.25% | 0.28% |  |
| D | 10484 | 9169 | 260 | 260 | 2.48% | 2.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3991041 | 18639.93 | 1028 | 1005 | 214.1 |
| A | 0 | 247 | 341339 | 1589.91 | 1028 | 1005 | 214.1 |
| A | 7 | 3 | 126647 | 586.95 | 1028 | 1005 | 214.1 |
| B | 3 | 112 | 675960 | 3323.45 | 1025 | 988 | 203.1 |
| B | 5 | 32 | 43249 | 208.09 | 1025 | 988 | 203.1 |
| B | 12 | 111 | 26757 | 126.88 | 1025 | 988 | 203.1 |
| C | 12 | 2 | 110603 | 459.56 | 1016 | 1022 | 238.4 |
| C | 1 | 3 | 91822 | 380.79 | 1016 | 1022 | 238.4 |
| C | 3 | 9 | 19469 | 77.36 | 1016 | 1022 | 238.4 |
| D | 1 | 52 | 747880 | 3028.49 | 988 | 955 | 246.6 |
| D | 5 | 33 | 280813 | 1134.72 | 988 | 955 | 246.6 |
| D | 2 | 249 | 260723 | 1053.26 | 988 | 955 | 246.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

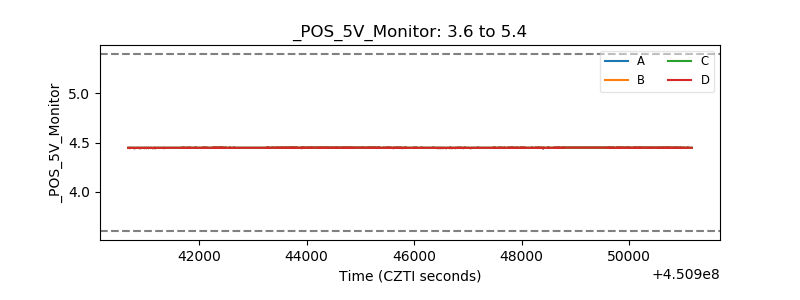

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
