| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_094T02_9000006190_46243cztM0_level2.fits | modeM0/AS1A13_094T02_9000006190_46243cztM0_level2_quad_clean.evt |
| Size (bytes) | 250,534,080 | 52,652,160 |
| Size | 238.9 MB | 50.2 MB |
| Events in quadrant A | 3,186,471 | 339,880 |
| Events in quadrant B | 2,187,939 | 360,160 |
| Events in quadrant C | 1,521,308 | 352,222 |
| Events in quadrant D | 2,133,337 | 318,890 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 66 | 0 |
| B | 0 | 66 | 0 |
| C | 0 | 66 | 0 |
| D | 0 | 66 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11799 | 1 |
| B | 0 | 8698 | 1 |
| C | 0 | 6736 | 2 |
| D | 0 | 8527 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3134 | 215 | 6.860243% |
| B | 3134 | 133 | 4.243778% |
| C | 3133 | 68 | 2.170444% |
| D | 3133 | 132 | 4.213214% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4284 | 3134 | 22 | 22 | 0.51% | 0.70% |  |
| B | 4284 | 3134 | 13 | 13 | 0.30% | 0.41% |  |
| C | 4283 | 3133 | 8 | 8 | 0.19% | 0.26% |  |
| D | 4283 | 3133 | 72 | 72 | 1.68% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1618993 | 21326.62 | 358 | 350 | 75.9 |
| A | 0 | 247 | 152333 | 2002.47 | 358 | 350 | 75.9 |
| A | 0 | 226 | 10973 | 139.96 | 358 | 350 | 75.9 |
| B | 3 | 112 | 565249 | 8005.64 | 360 | 350 | 70.6 |
| B | 4 | 171 | 117957 | 1666.7 | 360 | 350 | 70.6 |
| B | 5 | 32 | 54960 | 773.92 | 360 | 350 | 70.6 |
| C | 12 | 2 | 64035 | 755.0 | 358 | 358 | 84.3 |
| C | 2 | 14 | 33127 | 388.53 | 358 | 358 | 84.3 |
| C | 3 | 9 | 17475 | 202.95 | 358 | 358 | 84.3 |
| D | 12 | 1 | 312254 | 3500.82 | 355 | 343 | 89.1 |
| D | 5 | 235 | 242967 | 2723.15 | 355 | 343 | 89.1 |
| D | 3 | 13 | 98282 | 1099.24 | 355 | 343 | 89.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

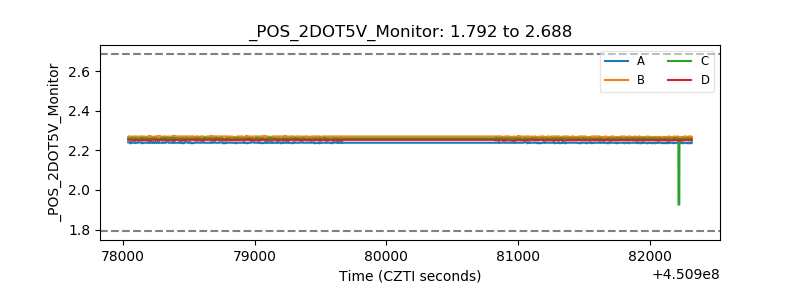

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
