| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_094T02_9000006190_46245cztM0_level2.fits | modeM0/AS1A13_094T02_9000006190_46245cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,268,800 | 112,242,240 |
| Size | 492.4 MB | 107.0 MB |
| Events in quadrant A | 6,625,827 | 720,558 |
| Events in quadrant B | 5,093,108 | 761,701 |
| Events in quadrant C | 3,291,176 | 751,953 |
| Events in quadrant D | 3,566,633 | 685,404 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24535 | 1 |
| B | 0 | 19940 | 1 |
| C | 0 | 14862 | 1 |
| D | 0 | 15624 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6886 | 308 | 4.472843% |
| B | 6886 | 172 | 2.497822% |
| C | 6886 | 93 | 1.350566% |
| D | 6886 | 107 | 1.553877% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7691 | 6887 | 61 | 61 | 0.79% | 0.89% |  |
| B | 7691 | 6886 | 54 | 54 | 0.70% | 0.78% |  |
| C | 7691 | 6887 | 55 | 55 | 0.72% | 0.80% |  |
| D | 7691 | 6887 | 60 | 60 | 0.78% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3508725 | 22921.69 | 736 | 720 | 153.0 |
| A | 0 | 247 | 201153 | 1309.65 | 736 | 720 | 153.0 |
| A | 0 | 226 | 16715 | 104.51 | 736 | 720 | 153.0 |
| B | 3 | 112 | 1838256 | 12823.11 | 745 | 722 | 143.3 |
| B | 4 | 171 | 112653 | 781.1 | 745 | 722 | 143.3 |
| B | 5 | 255 | 45433 | 312.01 | 745 | 722 | 143.3 |
| C | 12 | 2 | 232633 | 1324.14 | 746 | 748 | 175.1 |
| C | 1 | 3 | 70726 | 399.59 | 746 | 748 | 175.1 |
| C | 3 | 9 | 66565 | 375.83 | 746 | 748 | 175.1 |
| D | 2 | 249 | 167431 | 903.5 | 742 | 717 | 184.5 |
| D | 1 | 52 | 129306 | 696.89 | 742 | 717 | 184.5 |
| D | 8 | 129 | 91271 | 490.76 | 742 | 717 | 184.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

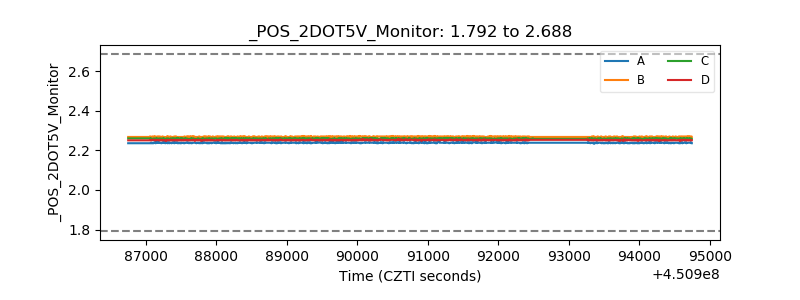

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
