| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_094T02_9000006190_46246cztM0_level2.fits | modeM0/AS1A13_094T02_9000006190_46246cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,490,560 | 115,865,280 |
| Size | 518.3 MB | 110.5 MB |
| Events in quadrant A | 6,980,915 | 741,720 |
| Events in quadrant B | 4,516,095 | 782,091 |
| Events in quadrant C | 3,563,914 | 782,253 |
| Events in quadrant D | 4,496,218 | 698,305 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26015 | 1 |
| B | 0 | 18342 | 1 |
| C | 0 | 15944 | 1 |
| D | 0 | 18577 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7238 | 361 | 4.987566% |
| B | 7237 | 187 | 2.583944% |
| C | 7238 | 77 | 1.063830% |
| D | 7238 | 274 | 3.785576% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7588 | 7239 | 198 | 198 | 2.61% | 2.74% |  |
| B | 7587 | 7237 | 88 | 88 | 1.16% | 1.22% |  |
| C | 7588 | 7239 | 46 | 46 | 0.61% | 0.64% |  |
| D | 7588 | 7239 | 210 | 210 | 2.77% | 2.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3326048 | 20646.58 | 770 | 755 | 161.1 |
| A | 0 | 247 | 513338 | 3182.6 | 770 | 755 | 161.1 |
| A | 6 | 10 | 68330 | 419.57 | 770 | 755 | 161.1 |
| B | 3 | 112 | 1018172 | 6603.99 | 781 | 755 | 154.1 |
| B | 5 | 172 | 191026 | 1235.04 | 781 | 755 | 154.1 |
| B | 4 | 171 | 56935 | 364.66 | 781 | 755 | 154.1 |
| C | 12 | 2 | 201547 | 1091.57 | 783 | 785 | 183.9 |
| C | 3 | 9 | 179153 | 969.81 | 783 | 785 | 183.9 |
| C | 1 | 3 | 111948 | 604.41 | 783 | 785 | 183.9 |
| D | 12 | 128 | 404709 | 2103.35 | 770 | 747 | 192.1 |
| D | 2 | 249 | 290035 | 1506.27 | 770 | 747 | 192.1 |
| D | 1 | 52 | 267919 | 1391.11 | 770 | 747 | 192.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

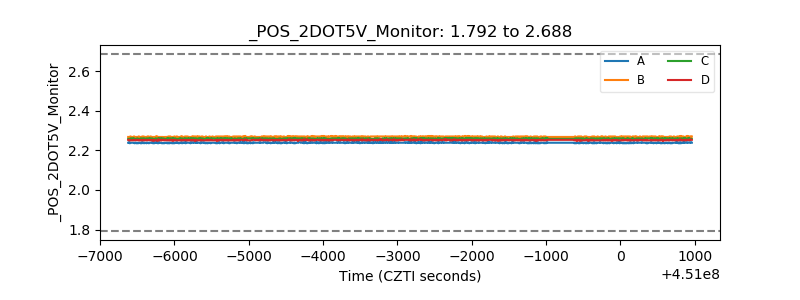

| +2.5 Volts monitor |  |

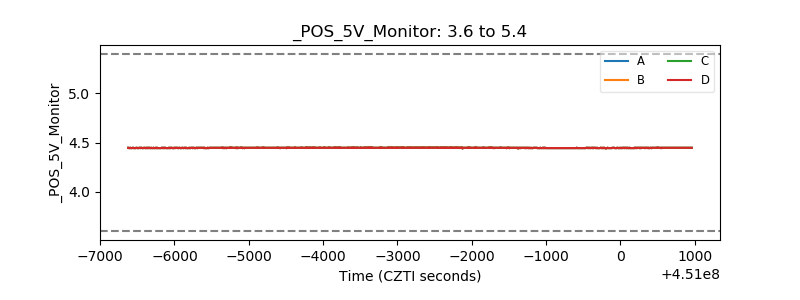

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
