| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_094T02_9000006190_46256cztM0_level2.fits | modeM0/AS1A13_094T02_9000006190_46256cztM0_level2_quad_clean.evt |
| Size (bytes) | 160,289,280 | 34,810,560 |
| Size | 152.9 MB | 33.2 MB |
| Events in quadrant A | 1,937,028 | 237,196 |
| Events in quadrant B | 1,257,283 | 240,688 |
| Events in quadrant C | 1,072,658 | 221,994 |
| Events in quadrant D | 1,500,290 | 201,761 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7061 | 0 |
| B | 0 | 5099 | 0 |
| C | 0 | 4686 | 0 |
| D | 0 | 5877 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2109 | 5 | 0.237079% |
| B | 2109 | 6 | 0.284495% |
| C | 2110 | 25 | 1.184834% |
| D | 2110 | 87 | 4.123223% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2109 | 2109 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2109 | 2109 | 3 | 3 | 0.14% | 0.14% |  |
| C | 2110 | 2110 | 24 | 24 | 1.14% | 1.14% |  |
| D | 2110 | 2110 | 92 | 92 | 4.36% | 4.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1047630 | 21808.2 | 226 | 221 | 48.0 |
| A | 0 | 247 | 6682 | 134.53 | 226 | 221 | 48.0 |
| A | 13 | 254 | 3793 | 74.37 | 226 | 221 | 48.0 |
| B | 3 | 112 | 281705 | 6212.6 | 223 | 216 | 45.3 |
| B | 5 | 172 | 33168 | 727.27 | 223 | 216 | 45.3 |
| B | 5 | 255 | 25349 | 554.7 | 223 | 216 | 45.3 |
| C | 12 | 2 | 94685 | 1789.19 | 220 | 221 | 52.8 |
| C | 1 | 3 | 77315 | 1460.19 | 220 | 221 | 52.8 |
| C | 3 | 233 | 37190 | 700.21 | 220 | 221 | 52.8 |
| D | 1 | 52 | 402047 | 7168.66 | 220 | 212 | 56.1 |
| D | 8 | 129 | 179322 | 3195.29 | 220 | 212 | 56.1 |
| D | 1 | 47 | 20895 | 368.98 | 220 | 212 | 56.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

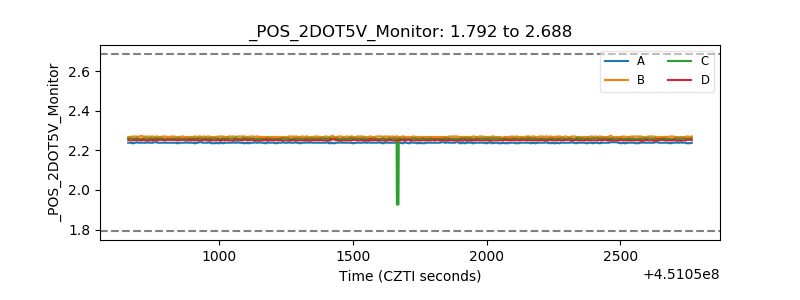

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
