| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T10_9000006192_46257cztM0_level2.fits | modeM0/AS1A13_071T10_9000006192_46257cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,224,640 | 105,223,680 |
| Size | 438.0 MB | 100.3 MB |
| Events in quadrant A | 5,624,917 | 702,624 |
| Events in quadrant B | 4,053,972 | 721,258 |
| Events in quadrant C | 3,317,948 | 693,159 |
| Events in quadrant D | 3,522,723 | 638,239 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20833 | 1 |
| B | 0 | 16087 | 1 |
| C | 0 | 14101 | 1 |
| D | 0 | 14612 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6176 | 236 | 3.821244% |
| B | 6177 | 286 | 4.630079% |
| C | 6177 | 230 | 3.723490% |
| D | 6177 | 206 | 3.334952% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7311 | 6177 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7311 | 6176 | 135 | 135 | 1.85% | 2.19% |  |
| C | 7312 | 6177 | 125 | 125 | 1.71% | 2.02% |  |
| D | 7312 | 6177 | 76 | 76 | 1.04% | 1.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2861079 | 19406.17 | 711 | 696 | 147.4 |
| A | 13 | 254 | 10232 | 64.7 | 711 | 696 | 147.4 |
| A | 13 | 6 | 10123 | 63.96 | 711 | 696 | 147.4 |
| B | 3 | 112 | 801804 | 5898.07 | 702 | 682 | 135.8 |
| B | 5 | 32 | 355207 | 2610.1 | 702 | 682 | 135.8 |
| B | 5 | 172 | 95181 | 695.73 | 702 | 682 | 135.8 |
| C | 12 | 2 | 386142 | 2375.58 | 702 | 704 | 162.2 |
| C | 1 | 3 | 165657 | 1016.66 | 702 | 704 | 162.2 |
| C | 11 | 16 | 16664 | 98.37 | 702 | 704 | 162.2 |
| D | 1 | 52 | 274064 | 1565.79 | 705 | 684 | 174.6 |
| D | 13 | 249 | 185709 | 1059.74 | 705 | 684 | 174.6 |
| D | 8 | 129 | 105465 | 600.14 | 705 | 684 | 174.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

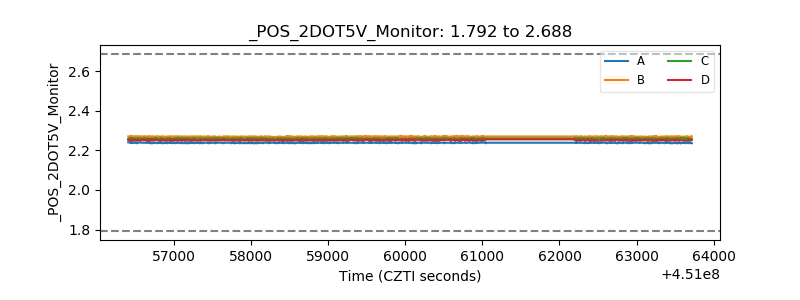

| +2.5 Volts monitor |  |

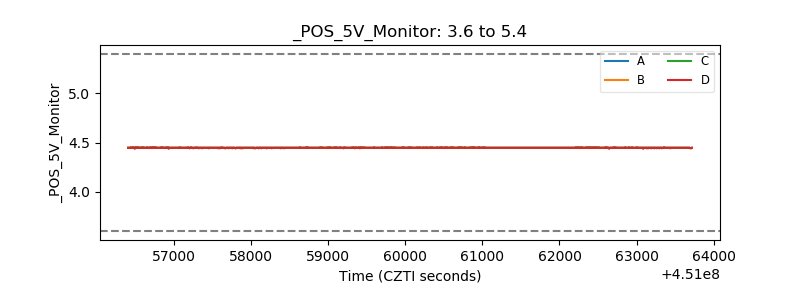

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
