| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T10_9000006192_46261cztM0_level2.fits | modeM0/AS1A13_071T10_9000006192_46261cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,933,440 | 123,143,040 |
| Size | 562.6 MB | 117.4 MB |
| Events in quadrant A | 6,600,449 | 819,487 |
| Events in quadrant B | 4,549,053 | 845,576 |
| Events in quadrant C | 3,608,195 | 830,488 |
| Events in quadrant D | 6,482,635 | 697,293 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24863 | 2 |
| B | 0 | 18694 | 2 |
| C | 0 | 16488 | 2 |
| D | 0 | 24731 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7704 | 136 | 1.765317% |
| B | 7705 | 156 | 2.024659% |
| C | 7704 | 54 | 0.700935% |
| D | 7704 | 789 | 10.241433% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7769 | 7707 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7770 | 7706 | 50 | 50 | 0.64% | 0.65% |  |
| C | 7769 | 7707 | 37 | 37 | 0.48% | 0.48% |  |
| D | 7769 | 7707 | 682 | 682 | 8.78% | 8.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3310984 | 18686.6 | 848 | 827 | 177.1 |
| A | 13 | 254 | 13530 | 71.71 | 848 | 827 | 177.1 |
| A | 3 | 137 | 9936 | 51.42 | 848 | 827 | 177.1 |
| B | 3 | 112 | 994447 | 5931.12 | 848 | 817 | 167.5 |
| B | 5 | 172 | 135535 | 804.15 | 848 | 817 | 167.5 |
| B | 5 | 32 | 23049 | 132.7 | 848 | 817 | 167.5 |
| C | 12 | 2 | 204055 | 1016.34 | 850 | 855 | 199.9 |
| C | 1 | 3 | 43162 | 211.61 | 850 | 855 | 199.9 |
| C | 0 | 207 | 19531 | 93.41 | 850 | 855 | 199.9 |
| D | 1 | 52 | 1194231 | 5923.98 | 807 | 780 | 201.5 |
| D | 2 | 249 | 771891 | 3827.59 | 807 | 780 | 201.5 |
| D | 5 | 171 | 677404 | 3358.58 | 807 | 780 | 201.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

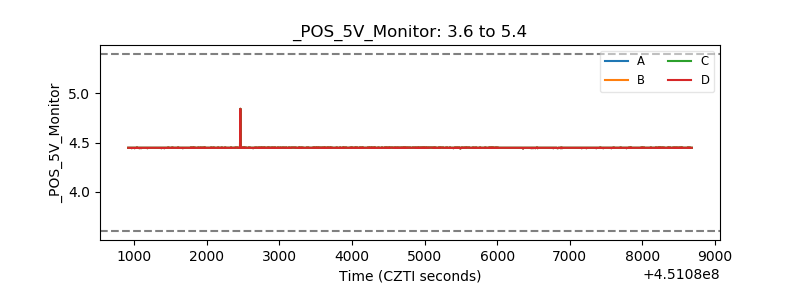

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
