| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T10_9000006192_46265cztM0_level2.fits | modeM0/AS1A13_071T10_9000006192_46265cztM0_level2_quad_clean.evt |
| Size (bytes) | 824,451,840 | 173,736,000 |
| Size | 786.3 MB | 165.7 MB |
| Events in quadrant A | 9,196,351 | 1,145,499 |
| Events in quadrant B | 7,739,133 | 1,171,591 |
| Events in quadrant C | 4,884,401 | 1,164,867 |
| Events in quadrant D | 7,834,131 | 1,005,091 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 224 | 0 |
| B | 0 | 224 | 0 |
| C | 0 | 224 | 0 |
| D | 0 | 224 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34628 | 2 |
| B | 0 | 30596 | 2 |
| C | 0 | 23121 | 2 |
| D | 0 | 31548 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11174 | 111 | 0.993377% |
| B | 11174 | 365 | 3.266512% |
| C | 11175 | 48 | 0.429530% |
| D | 11175 | 769 | 6.881432% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11559 | 11176 | 0 | 0 | 0.00% | 0.00% |  |
| B | 11559 | 11176 | 225 | 225 | 1.95% | 2.01% |  |
| C | 11560 | 11177 | 26 | 26 | 0.22% | 0.23% |  |
| D | 11560 | 11177 | 711 | 711 | 6.15% | 6.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4573466 | 18415.35 | 1190 | 1162 | 248.3 |
| A | 13 | 254 | 18687 | 70.58 | 1190 | 1162 | 248.3 |
| A | 3 | 137 | 14473 | 53.61 | 1190 | 1162 | 248.3 |
| B | 3 | 112 | 2898977 | 12534.68 | 1183 | 1144 | 231.2 |
| B | 5 | 172 | 82245 | 350.8 | 1183 | 1144 | 231.2 |
| B | 12 | 111 | 29810 | 123.99 | 1183 | 1144 | 231.2 |
| C | 12 | 2 | 213901 | 766.64 | 1185 | 1188 | 277.5 |
| C | 14 | 254 | 29444 | 101.84 | 1185 | 1188 | 277.5 |
| C | 13 | 61 | 7942 | 24.34 | 1185 | 1188 | 277.5 |
| D | 2 | 249 | 1442320 | 5050.9 | 1144 | 1109 | 285.3 |
| D | 1 | 52 | 612233 | 2141.76 | 1144 | 1109 | 285.3 |
| D | 5 | 171 | 506471 | 1771.1 | 1144 | 1109 | 285.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

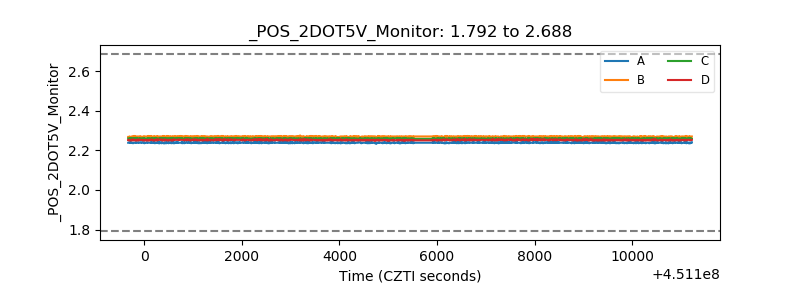

| +2.5 Volts monitor |  |

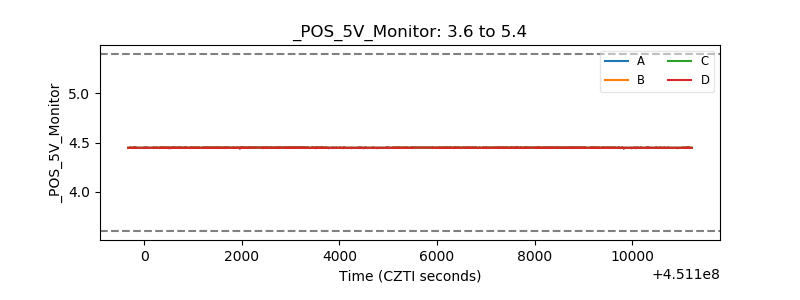

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
