| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T10_9000006192_46269cztM0_level2.fits | modeM0/AS1A13_071T10_9000006192_46269cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,837,120 | 112,757,760 |
| Size | 495.8 MB | 107.5 MB |
| Events in quadrant A | 6,100,764 | 742,957 |
| Events in quadrant B | 4,257,500 | 787,442 |
| Events in quadrant C | 3,051,972 | 758,026 |
| Events in quadrant D | 5,302,880 | 650,436 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22321 | 2 |
| B | 0 | 17197 | 2 |
| C | 0 | 14041 | 2 |
| D | 0 | 20432 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6832 | 204 | 2.985948% |
| B | 6832 | 103 | 1.507611% |
| C | 6832 | 33 | 0.483021% |
| D | 6832 | 449 | 6.572014% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7897 | 6833 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7897 | 6833 | 25 | 25 | 0.32% | 0.37% |  |
| C | 7897 | 6833 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7897 | 6833 | 376 | 376 | 4.76% | 5.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3116504 | 19681.29 | 770 | 755 | 158.3 |
| A | 13 | 254 | 10213 | 59.74 | 770 | 755 | 158.3 |
| A | 3 | 137 | 8797 | 50.8 | 770 | 755 | 158.3 |
| B | 3 | 112 | 1028049 | 6802.9 | 768 | 743 | 151.0 |
| B | 5 | 32 | 129143 | 850.27 | 768 | 743 | 151.0 |
| B | 12 | 111 | 19198 | 122.21 | 768 | 743 | 151.0 |
| C | 12 | 2 | 77036 | 430.33 | 757 | 760 | 177.3 |
| C | 3 | 233 | 21766 | 118.51 | 757 | 760 | 177.3 |
| C | 13 | 61 | 5135 | 24.68 | 757 | 760 | 177.3 |
| D | 13 | 249 | 1099785 | 5957.59 | 735 | 710 | 184.5 |
| D | 1 | 52 | 913441 | 4947.5 | 735 | 710 | 184.5 |
| D | 13 | 171 | 192613 | 1040.22 | 735 | 710 | 184.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

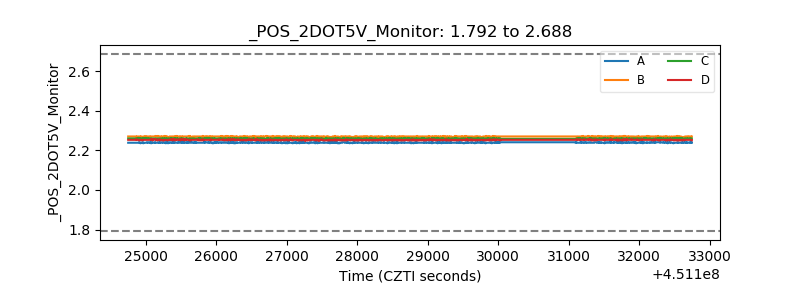

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
