| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T01_9000006192_46272cztM0_level2.fits | modeM0/AS1A13_072T01_9000006192_46272cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,780,160 | 115,202,880 |
| Size | 511.9 MB | 109.9 MB |
| Events in quadrant A | 6,182,940 | 763,893 |
| Events in quadrant B | 5,187,679 | 789,811 |
| Events in quadrant C | 3,125,104 | 778,333 |
| Events in quadrant D | 4,855,633 | 690,215 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22785 | 2 |
| B | 0 | 20174 | 2 |
| C | 0 | 13896 | 2 |
| D | 0 | 19047 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6689 | 338 | 5.053072% |
| B | 6689 | 354 | 5.292271% |
| C | 6689 | 115 | 1.719241% |
| D | 6689 | 417 | 6.234116% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7814 | 6690 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7814 | 6690 | 119 | 119 | 1.52% | 1.78% |  |
| C | 7814 | 6690 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7814 | 6690 | 250 | 250 | 3.20% | 3.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3155792 | 19644.49 | 778 | 764 | 160.6 |
| A | 13 | 254 | 11542 | 67.11 | 778 | 764 | 160.6 |
| A | 3 | 137 | 8557 | 48.52 | 778 | 764 | 160.6 |
| B | 3 | 112 | 1572400 | 10521.48 | 773 | 749 | 149.4 |
| B | 5 | 172 | 385278 | 2574.24 | 773 | 749 | 149.4 |
| B | 0 | 190 | 95540 | 634.58 | 773 | 749 | 149.4 |
| C | 12 | 2 | 67320 | 365.25 | 783 | 787 | 182.2 |
| C | 1 | 3 | 5903 | 28.09 | 783 | 787 | 182.2 |
| C | 13 | 61 | 5325 | 24.91 | 783 | 787 | 182.2 |
| D | 1 | 52 | 974125 | 5187.82 | 766 | 744 | 187.6 |
| D | 8 | 129 | 379966 | 2021.13 | 766 | 744 | 187.6 |
| D | 13 | 249 | 340025 | 1808.26 | 766 | 744 | 187.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

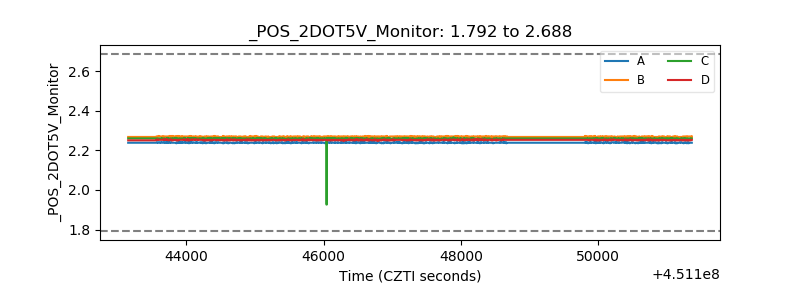

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
