| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T01_9000006192_46280cztM0_level2.fits | modeM0/AS1A13_072T01_9000006192_46280cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,561,181,760 | 286,335,360 |
| Size | 1.5 GB | 273.1 MB |
| Events in quadrant A | 15,771,586 | 1,909,684 |
| Events in quadrant B | 12,951,026 | 1,966,459 |
| Events in quadrant C | 8,219,980 | 1,965,057 |
| Events in quadrant D | 19,400,275 | 1,534,715 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 59330 | 6 |
| B | 0 | 51479 | 3 |
| C | 0 | 38904 | 3 |
| D | 0 | 70727 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 382 | 0 |
| D | 0 | 382 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18759 | 355 | 1.892425% |
| B | 18760 | 503 | 2.681237% |
| C | 18760 | 121 | 0.644989% |
| D | 18759 | 2874 | 15.320646% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20215 | 18764 | 19 | 19 | 0.09% | 0.10% |  |
| B | 20215 | 18763 | 169 | 169 | 0.84% | 0.90% |  |
| C | 20215 | 18763 | 62 | 62 | 0.31% | 0.33% |  |
| D | 20215 | 18764 | 2542 | 2542 | 12.57% | 13.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7813912 | 18858.24 | 2012 | 1968 | 414.2 |
| A | 15 | 14 | 53894 | 125.35 | 2012 | 1968 | 414.2 |
| A | 7 | 3 | 48988 | 113.51 | 2012 | 1968 | 414.2 |
| B | 3 | 112 | 3821393 | 9698.17 | 2008 | 1936 | 393.8 |
| B | 5 | 172 | 418852 | 1058.61 | 2008 | 1936 | 393.8 |
| B | 5 | 63 | 282333 | 711.97 | 2008 | 1936 | 393.8 |
| C | 12 | 2 | 386857 | 822.29 | 2005 | 2010 | 468.0 |
| C | 12 | 250 | 18759 | 35.79 | 2005 | 2010 | 468.0 |
| C | 13 | 61 | 13622 | 24.81 | 2005 | 2010 | 468.0 |
| D | 1 | 52 | 5323040 | 11380.06 | 1879 | 1818 | 467.6 |
| D | 3 | 13 | 5190518 | 11096.65 | 1879 | 1818 | 467.6 |
| D | 13 | 249 | 986785 | 2106.47 | 1879 | 1818 | 467.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

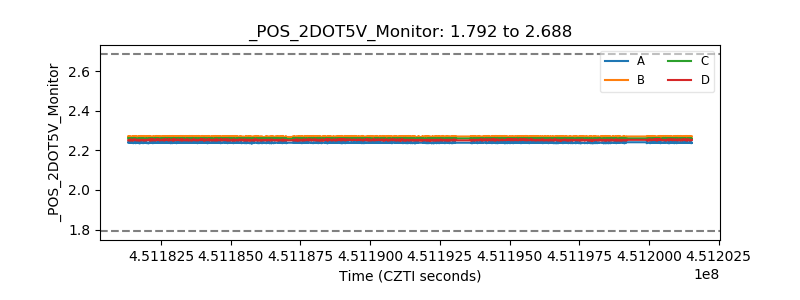

| +2.5 Volts monitor |  |

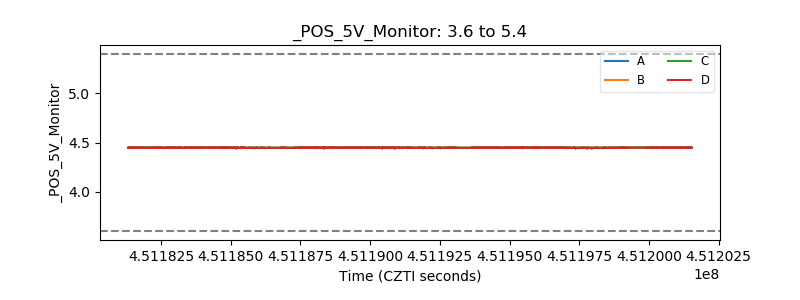

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
