| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T01_9000006192_46281cztM0_level2.fits | modeM0/AS1A13_072T01_9000006192_46281cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,364,160 | 111,173,760 |
| Size | 479.1 MB | 106.0 MB |
| Events in quadrant A | 6,034,029 | 717,602 |
| Events in quadrant B | 4,933,657 | 751,866 |
| Events in quadrant C | 3,022,308 | 740,127 |
| Events in quadrant D | 4,065,963 | 671,999 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22404 | 3 |
| B | 0 | 19496 | 2 |
| C | 0 | 14248 | 2 |
| D | 0 | 16988 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6961 | 179 | 2.571470% |
| B | 6961 | 159 | 2.284155% |
| C | 6961 | 30 | 0.430973% |
| D | 6961 | 93 | 1.336015% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7826 | 6962 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7826 | 6962 | 30 | 30 | 0.38% | 0.43% |  |
| C | 7826 | 6962 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7826 | 6962 | 68 | 68 | 0.87% | 0.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3086576 | 19697.83 | 755 | 738 | 156.7 |
| A | 13 | 254 | 12448 | 74.75 | 755 | 738 | 156.7 |
| A | 3 | 137 | 8770 | 51.27 | 755 | 738 | 156.7 |
| B | 3 | 112 | 1738861 | 11651.71 | 755 | 731 | 149.2 |
| B | 0 | 199 | 80978 | 537.94 | 755 | 731 | 149.2 |
| B | 0 | 190 | 66679 | 442.09 | 755 | 731 | 149.2 |
| C | 2 | 14 | 35727 | 198.64 | 748 | 749 | 176.1 |
| C | 12 | 2 | 31261 | 173.28 | 748 | 749 | 176.1 |
| C | 4 | 254 | 16146 | 87.44 | 748 | 749 | 176.1 |
| D | 1 | 52 | 935724 | 5035.51 | 742 | 717 | 185.7 |
| D | 13 | 249 | 99209 | 530.43 | 742 | 717 | 185.7 |
| D | 2 | 249 | 93534 | 499.87 | 742 | 717 | 185.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

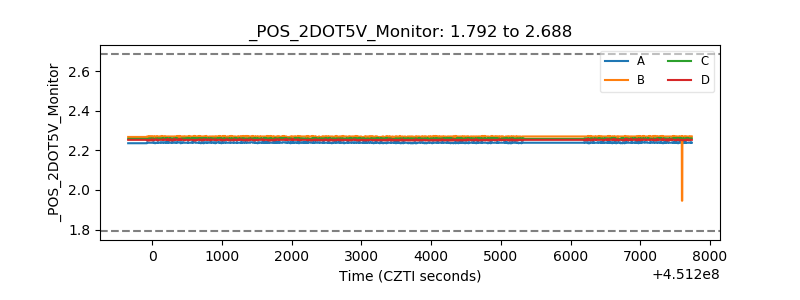

| +2.5 Volts monitor |  |

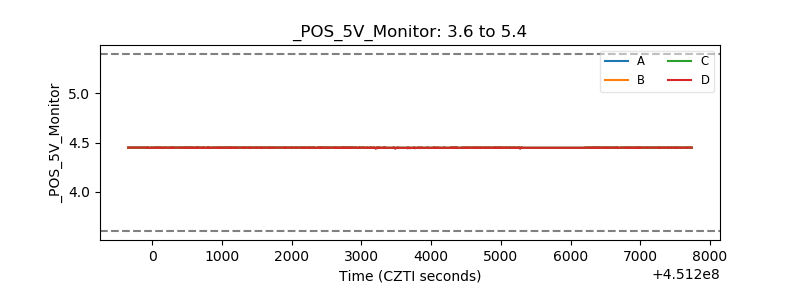

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
