| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T02_9000006194_46286cztM0_level2.fits | modeM0/AS1A13_072T02_9000006194_46286cztM0_level2_quad_clean.evt |
| Size (bytes) | 235,938,240 | 57,945,600 |
| Size | 225.0 MB | 55.3 MB |
| Events in quadrant A | 3,094,484 | 379,223 |
| Events in quadrant B | 2,042,964 | 401,245 |
| Events in quadrant C | 1,646,994 | 382,737 |
| Events in quadrant D | 1,687,560 | 354,182 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11312 | 1 |
| B | 0 | 8220 | 1 |
| C | 0 | 7122 | 1 |
| D | 0 | 7285 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3348 | 219 | 6.541219% |
| B | 3348 | 127 | 3.793309% |
| C | 3348 | 97 | 2.897252% |
| D | 3348 | 83 | 2.479092% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4458 | 3349 | 3 | 3 | 0.07% | 0.09% |  |
| B | 4458 | 3349 | 1 | 1 | 0.02% | 0.03% |  |
| C | 4458 | 3349 | 2 | 2 | 0.04% | 0.06% |  |
| D | 4458 | 3349 | 5 | 5 | 0.11% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1488510 | 16862.29 | 415 | 404 | 88.3 |
| A | 13 | 254 | 5221 | 54.58 | 415 | 404 | 88.3 |
| A | 3 | 137 | 4667 | 48.31 | 415 | 404 | 88.3 |
| B | 3 | 112 | 374018 | 4465.82 | 414 | 402 | 83.7 |
| B | 0 | 190 | 22302 | 261.77 | 414 | 402 | 83.7 |
| B | 12 | 111 | 10879 | 125.23 | 414 | 402 | 83.7 |
| C | 12 | 2 | 35486 | 354.04 | 412 | 413 | 99.1 |
| C | 14 | 67 | 6770 | 64.17 | 412 | 413 | 99.1 |
| C | 13 | 61 | 2717 | 23.26 | 412 | 413 | 99.1 |
| D | 11 | 192 | 47286 | 441.85 | 413 | 400 | 106.1 |
| D | 2 | 249 | 31986 | 297.66 | 413 | 400 | 106.1 |
| D | 13 | 249 | 17202 | 158.34 | 413 | 400 | 106.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

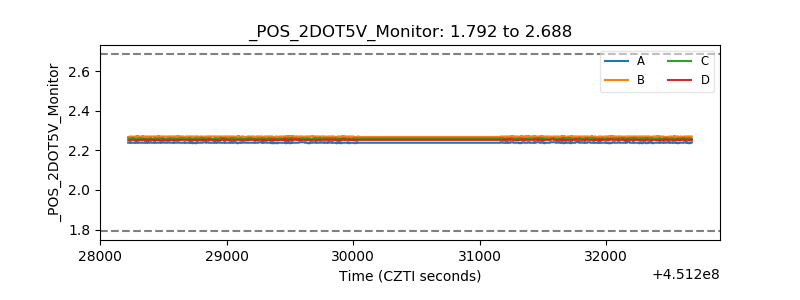

| +2.5 Volts monitor |  |

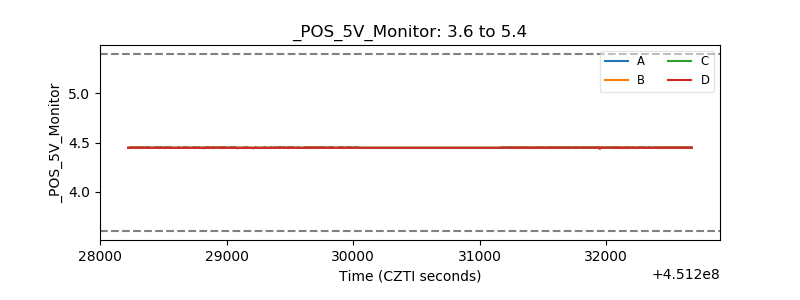

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
