| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T02_9000006194_46294cztM0_level2.fits | modeM0/AS1A13_072T02_9000006194_46294cztM0_level2_quad_clean.evt |
| Size (bytes) | 890,749,440 | 208,229,760 |
| Size | 849.5 MB | 198.6 MB |
| Events in quadrant A | 11,120,193 | 1,360,959 |
| Events in quadrant B | 7,440,653 | 1,418,633 |
| Events in quadrant C | 5,943,508 | 1,377,235 |
| Events in quadrant D | 7,437,900 | 1,227,676 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41628 | 2 |
| B | 0 | 30485 | 2 |
| C | 0 | 27616 | 2 |
| D | 0 | 32235 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 272 | 0 |
| B | 0 | 272 | 0 |
| C | 0 | 272 | 0 |
| D | 0 | 272 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13310 | 284 | 2.133734% |
| B | 13311 | 179 | 1.344752% |
| C | 13311 | 67 | 0.503343% |
| D | 13311 | 542 | 4.071820% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14240 | 13312 | 66 | 66 | 0.46% | 0.50% |  |
| B | 14240 | 13312 | 10 | 10 | 0.07% | 0.08% |  |
| C | 14241 | 13313 | 28 | 28 | 0.20% | 0.21% |  |
| D | 14241 | 13313 | 414 | 414 | 2.91% | 3.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5150292 | 16936.81 | 1469 | 1434 | 304.0 |
| A | 15 | 223 | 257636 | 842.76 | 1469 | 1434 | 304.0 |
| A | 9 | 191 | 27204 | 84.77 | 1469 | 1434 | 304.0 |
| B | 3 | 112 | 1307221 | 4485.26 | 1465 | 1412 | 291.1 |
| B | 5 | 255 | 114230 | 387.51 | 1465 | 1412 | 291.1 |
| B | 0 | 190 | 110033 | 373.1 | 1465 | 1412 | 291.1 |
| C | 1 | 3 | 147739 | 425.83 | 1457 | 1463 | 343.5 |
| C | 12 | 2 | 98101 | 281.32 | 1457 | 1463 | 343.5 |
| C | 14 | 67 | 9769 | 24.18 | 1457 | 1463 | 343.5 |
| D | 1 | 52 | 1264592 | 3544.86 | 1420 | 1377 | 356.4 |
| D | 13 | 249 | 614127 | 1719.51 | 1420 | 1377 | 356.4 |
| D | 11 | 192 | 129872 | 360.59 | 1420 | 1377 | 356.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

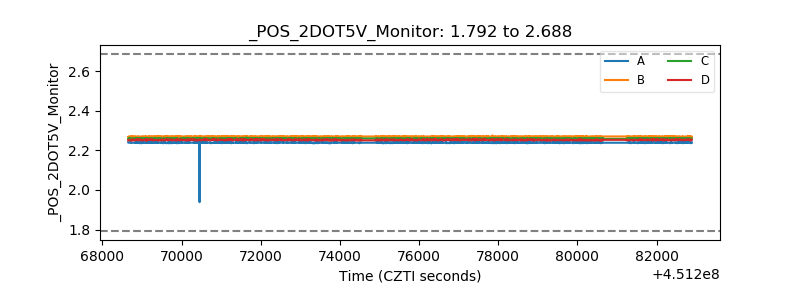

| +2.5 Volts monitor |  |

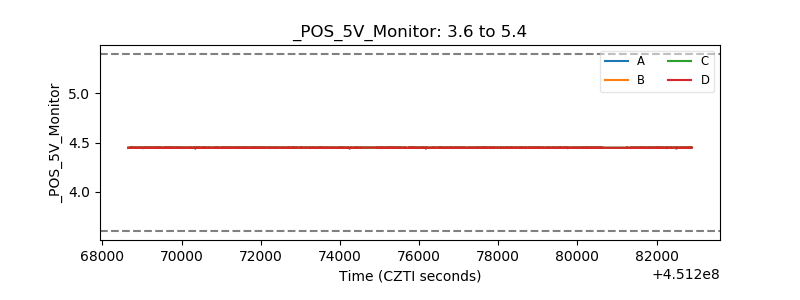

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
