| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T02_9000006194_46298cztM0_level2.fits | modeM0/AS1A13_072T02_9000006194_46298cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,448,000 | 109,713,600 |
| Size | 465.8 MB | 104.6 MB |
| Events in quadrant A | 6,250,601 | 729,953 |
| Events in quadrant B | 4,630,674 | 722,668 |
| Events in quadrant C | 3,327,791 | 727,023 |
| Events in quadrant D | 3,346,727 | 671,151 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22860 | 4 |
| B | 0 | 18202 | 2 |
| C | 0 | 14610 | 2 |
| D | 0 | 14874 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6757 | 332 | 4.913423% |
| B | 6758 | 575 | 8.508434% |
| C | 6758 | 178 | 2.633915% |
| D | 6758 | 156 | 2.308375% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8667 | 6759 | 12 | 12 | 0.14% | 0.18% |  |
| B | 8668 | 6760 | 256 | 256 | 2.95% | 3.79% |  |
| C | 8668 | 6760 | 47 | 47 | 0.54% | 0.70% |  |
| D | 8668 | 6760 | 27 | 27 | 0.31% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2914164 | 17513.49 | 798 | 781 | 166.4 |
| A | 15 | 223 | 195891 | 1172.88 | 798 | 781 | 166.4 |
| A | 10 | 255 | 41973 | 247.62 | 798 | 781 | 166.4 |
| B | 4 | 171 | 1026958 | 6697.28 | 772 | 746 | 153.2 |
| B | 3 | 112 | 515925 | 3362.17 | 772 | 746 | 153.2 |
| B | 12 | 111 | 20198 | 126.95 | 772 | 746 | 153.2 |
| C | 1 | 3 | 139395 | 751.29 | 784 | 788 | 184.5 |
| C | 12 | 2 | 81675 | 438.43 | 784 | 788 | 184.5 |
| C | 11 | 16 | 40619 | 215.9 | 784 | 788 | 184.5 |
| D | 13 | 249 | 240041 | 1208.4 | 787 | 762 | 198.0 |
| D | 2 | 249 | 49422 | 245.74 | 787 | 762 | 198.0 |
| D | 1 | 52 | 26820 | 131.6 | 787 | 762 | 198.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

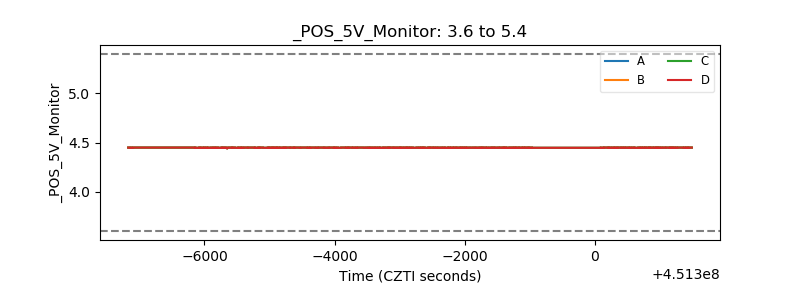

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
