| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T02_9000006194_46299cztM0_level2.fits | modeM0/AS1A13_072T02_9000006194_46299cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,708,160 | 109,540,800 |
| Size | 511.8 MB | 104.5 MB |
| Events in quadrant A | 6,170,021 | 749,539 |
| Events in quadrant B | 5,956,975 | 691,034 |
| Events in quadrant C | 3,210,893 | 741,164 |
| Events in quadrant D | 4,019,072 | 676,835 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22498 | 4 |
| B | 0 | 22209 | 2 |
| C | 0 | 13974 | 2 |
| D | 0 | 16381 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6578 | 290 | 4.408635% |
| B | 6578 | 1013 | 15.399818% |
| C | 6578 | 133 | 2.021891% |
| D | 6578 | 214 | 3.253268% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7658 | 6579 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7658 | 6579 | 690 | 690 | 9.01% | 10.49% |  |
| C | 7658 | 6579 | 32 | 32 | 0.42% | 0.49% |  |
| D | 7658 | 6579 | 98 | 98 | 1.28% | 1.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2833825 | 17235.89 | 791 | 776 | 164.4 |
| A | 15 | 223 | 239306 | 1451.18 | 791 | 776 | 164.4 |
| A | 7 | 3 | 29860 | 176.94 | 791 | 776 | 164.4 |
| B | 4 | 171 | 2375505 | 16269.0 | 734 | 712 | 146.0 |
| B | 3 | 112 | 654298 | 4477.52 | 734 | 712 | 146.0 |
| B | 12 | 111 | 18887 | 124.51 | 734 | 712 | 146.0 |
| C | 12 | 249 | 119886 | 651.63 | 779 | 783 | 182.8 |
| C | 12 | 2 | 27840 | 148.03 | 779 | 783 | 182.8 |
| C | 1 | 3 | 17364 | 90.72 | 779 | 783 | 182.8 |
| D | 1 | 52 | 636271 | 3236.32 | 777 | 752 | 196.4 |
| D | 13 | 249 | 372882 | 1895.04 | 777 | 752 | 196.4 |
| D | 5 | 171 | 45628 | 228.53 | 777 | 752 | 196.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

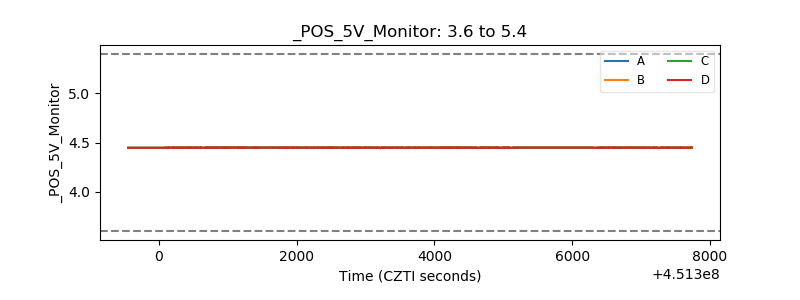

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
