| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T02_9000006194_46301cztM0_level2.fits | modeM0/AS1A13_072T02_9000006194_46301cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,201,600 | 115,954,560 |
| Size | 515.2 MB | 110.6 MB |
| Events in quadrant A | 6,222,307 | 766,083 |
| Events in quadrant B | 5,678,097 | 797,333 |
| Events in quadrant C | 3,306,563 | 774,660 |
| Events in quadrant D | 4,262,225 | 699,670 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22817 | 2 |
| B | 0 | 21631 | 2 |
| C | 0 | 14358 | 2 |
| D | 0 | 17321 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6800 | 425 | 6.250000% |
| B | 6801 | 407 | 5.984414% |
| C | 6801 | 179 | 2.631966% |
| D | 6801 | 309 | 4.543449% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9000 | 6802 | 6 | 6 | 0.07% | 0.09% |  |
| B | 9001 | 6803 | 61 | 61 | 0.68% | 0.90% |  |
| C | 9001 | 6803 | 4 | 4 | 0.04% | 0.06% |  |
| D | 9001 | 6803 | 92 | 92 | 1.02% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2941391 | 17079.52 | 831 | 814 | 172.2 |
| A | 15 | 223 | 38172 | 216.98 | 831 | 814 | 172.2 |
| A | 13 | 254 | 12316 | 66.81 | 831 | 814 | 172.2 |
| B | 4 | 171 | 1411848 | 8719.08 | 819 | 795 | 161.8 |
| B | 3 | 112 | 958930 | 5920.44 | 819 | 795 | 161.8 |
| B | 5 | 255 | 53458 | 325.41 | 819 | 795 | 161.8 |
| C | 12 | 2 | 48608 | 244.81 | 828 | 834 | 195.1 |
| C | 1 | 3 | 12933 | 62.0 | 828 | 834 | 195.1 |
| C | 12 | 250 | 11206 | 53.15 | 828 | 834 | 195.1 |
| D | 1 | 52 | 830040 | 4017.72 | 824 | 798 | 206.4 |
| D | 13 | 249 | 217199 | 1048.47 | 824 | 798 | 206.4 |
| D | 5 | 171 | 41887 | 199.08 | 824 | 798 | 206.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

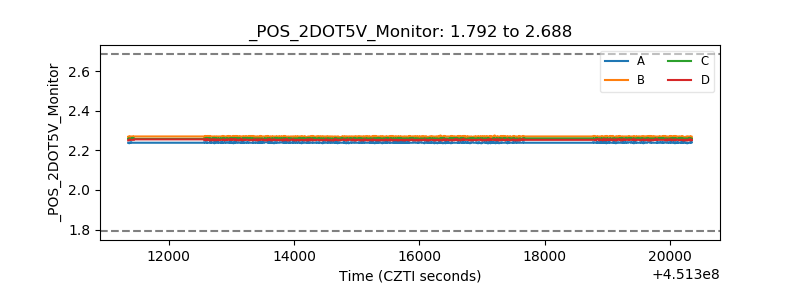

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
