| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T02_9000006194_46306cztM0_level2.fits | modeM0/AS1A13_072T02_9000006194_46306cztM0_level2_quad_clean.evt |
| Size (bytes) | 635,958,720 | 131,745,600 |
| Size | 606.5 MB | 125.6 MB |
| Events in quadrant A | 7,182,606 | 877,750 |
| Events in quadrant B | 5,310,387 | 886,441 |
| Events in quadrant C | 3,865,689 | 877,354 |
| Events in quadrant D | 6,540,931 | 771,810 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26741 | 0 |
| B | 0 | 21377 | 0 |
| C | 0 | 17706 | 1 |
| D | 0 | 25379 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8284 | 217 | 2.619507% |
| B | 8285 | 358 | 4.321062% |
| C | 8284 | 39 | 0.470787% |
| D | 8284 | 549 | 6.627233% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8284 | 8284 | 40 | 40 | 0.48% | 0.48% |  |
| B | 8285 | 8285 | 263 | 263 | 3.17% | 3.17% |  |
| C | 8284 | 8284 | 25 | 25 | 0.30% | 0.30% |  |
| D | 8284 | 8284 | 326 | 326 | 3.94% | 3.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3121444 | 15808.72 | 944 | 923 | 197.4 |
| A | 15 | 223 | 369844 | 1868.97 | 944 | 923 | 197.4 |
| A | 2 | 79 | 25408 | 124.04 | 944 | 923 | 197.4 |
| B | 4 | 171 | 1179396 | 6322.2 | 928 | 896 | 186.4 |
| B | 3 | 112 | 386243 | 2067.24 | 928 | 896 | 186.4 |
| B | 0 | 189 | 48194 | 253.74 | 928 | 896 | 186.4 |
| C | 1 | 3 | 74912 | 332.74 | 938 | 943 | 222.3 |
| C | 12 | 2 | 66635 | 295.51 | 938 | 943 | 222.3 |
| C | 12 | 249 | 48432 | 213.62 | 938 | 943 | 222.3 |
| D | 1 | 52 | 2917938 | 12656.15 | 914 | 886 | 230.5 |
| D | 13 | 249 | 110152 | 474.07 | 914 | 886 | 230.5 |
| D | 2 | 234 | 39869 | 169.13 | 914 | 886 | 230.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

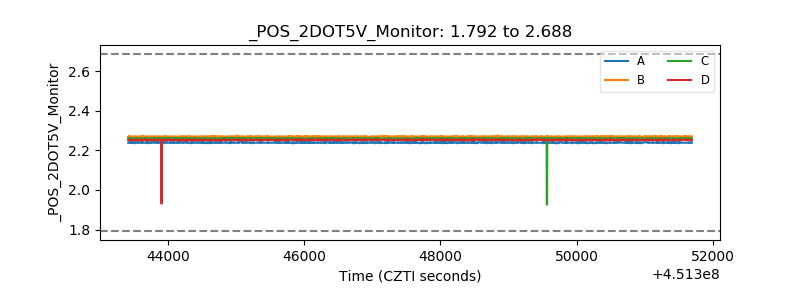

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
